PLANET SOLAR - PROJECT LAUNCHED 16 March 2006

Solar powered world 1st navigation May 2012 Guinness records







PlanetSolar docks in Paris, France September 2013







The following is an email that we received from Raphaël Domjan & Immo Stroeher on the 17th of April 2012:-





Dear PlanetSolar Friends,



I am writing to you from the cockpit of PlanetSolar. We are back in Europe and currently docked in Greece. It is a great moment for the whole PlanetSolar team and myself. After eight years of effort, our goal is finally in sight. We have covered more than 58’000 km thanks to the sun’s energy and crossed all the Oceans of the planet.



The Red Sea is a true corridor with a powerful wind coming down from the North. Now and then we had to face winds blowing at more than 35 knots (70 km/h). We decided to stay on the west coast. Once more Mother Nature has protected us. Conditions remained favourable as long as we were sailing along the coasts, where no stopover was possible. From the moment when we reached Sudan, we had to make unexpected stopovers to charge our batteries. We used this occasion to discover places as unlikely as they were wonderful. Such a place is Port Sudan, an amazing city and country, inhabited by people of infinite kindness.

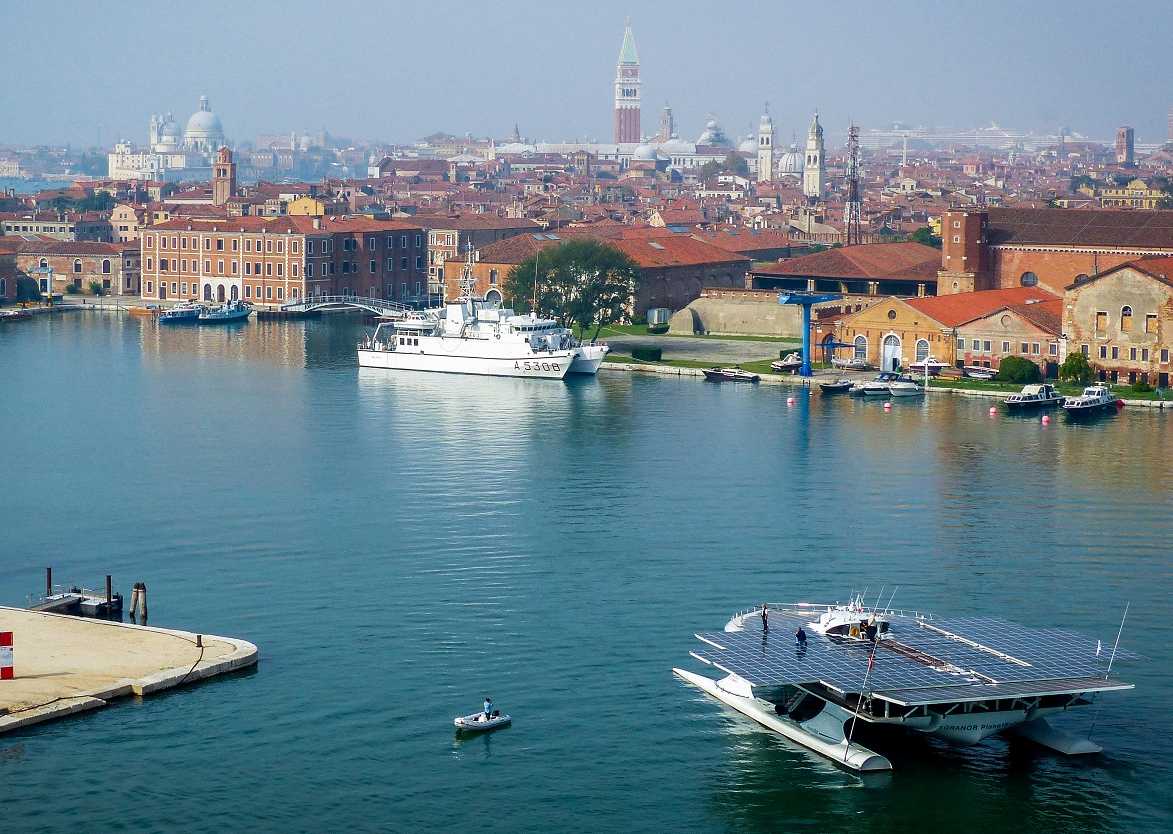

Turanor PlanetSolar coming in to port in Venice, Itay



PlanetSolar coming into harbour in Venice, Italy after a tour of the Mediterranean Ocean, October 2014









In Sudan, we were also lucky enough to visit the site of Commander Jacques Yves Cousteau’s underwater village, PréContinent II. It is here that six men lived underwater during one month in summer 1963. Albert Falco, one of our ambassadors, was one of those six men. It is an incredible moment to be here, 50 years after their expedition, with the world’s largest solar ship during the first sail up of the Red Sea with solar energy. I organise the dive on the site and we quickly find the remains of the village. After an exploratory dive with Jens, I accompany Gérard. Christian and Jens will be the last to dive. Thank you Sir Cousteau, thanks to Falco and all the team of the Calypso, it was a first… Moments out of time …



Gérard d’Aboville, who had joined us in Djibouti and sailed up the Red Sea with us, is leaving us in Hurghada, Egypt. He has to go back to Paris. Crossing the Suez Canal for the first time with a solar ship was a moving moment. We thank the authorities of the Suez Canal for their help and we also thank Mr Ferdinand de Lesseps and the Egyptian people who allowed our expedition to get back to the Mediterranean Sea.





planet solar Utube video





In the spirit of transparency and for the sake of our adventure, it is important to officially certify the success of the first world tour with solar energy. This is the reason why the UIM (Union Internationale Motonautique, member of the International Olympic Committee) is responsible for the certification of our world tour and our expedition is under its patronage.



We are keeping the expedition logbooks up to date. Every time we get to a new country, we let the custom and immigration authorities stamp our books as proof of our passage. We are sending our positions via two satellite beacons every 30 minutes. A notary has sealed our charging cables and emergency generators in Monaco. At our arrival, he will come and check that they are still in place. Our world tour will only be completed once we cross the finish line and our batteries are charged up to a minimum of 92%, in line with the battery charge level we had at the beginning of our journey.



From that moment we will have completed the first world tour respecting the strictest rules: passing the equator twice, crossing of our antipodal route, crossing all the longitude lines, and same point of departure and arrival. All of this achieved with the energy of our solar cells only.



We now have to reach Italy and then sail toward Corsica. Patrick Marchesseau will meet us there and we also hope to have a few days of rest to recharge our batteries and take on the last miles of this world tour. Come and be there with us for this historic moment, join us in Monaco on the 4th of May 2012 …



If everything goes well, we will see you in Monaco on the 4th of May 2012 after crossing the finish line and succeeding in this first world tour with solar energy. For those who will not be able to attend in Monaco, the crossing of the finish line as well as the press conference will be broadcasted live on our « SolarWebTV »! Do not miss this moment and follow the arrival in real time on our website (http://www.planetsolar.org).



We thank you all for your support.

Raphaël Domjan, Founder & Expedition leader
Immo Stroeher, Co-founder



PS: Do not forget to buy your own PlanetSolar products and become part of the Expedition! Visit our E-Shop here.

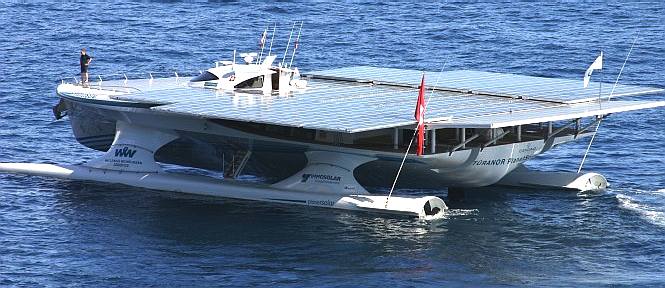

Turanor Planet Solar catamaran side and back







The PlanetSolar team presented their extraordinary challenge: Around the World in 80 Days Powered by Renewable Energies.  During a press conference held on Thursday, March 16, 2006, at 10:30 am, at The School of Business and Engineering Vaud, Switzerland, in its assembly hall.



PROPOSED ROUTE:



Initially, the team Around the World with Stopovers, Powered by Solar Energy, in 120 Days. The first objective was to successfully complete an around the world route with stopovers along the equator, where the maximum amount of sunlight is available. The over 40'000 km voyage should take place within 120 days and will be sailed at an average speed of 10 knots. Both navigators aboard the PlanetSolar will cross through the western part of the Mediterranean Sea, the Atlantic Ocean, the Panama Canal, the Pacific Ocean, the Indian Ocean and finally the Suez Canal, crossing the finish line at the start off point in the Mediterranean Sea.





THE ACTUAL ROUTE TAKEN:



The first solar electric world circumnavigation was from the East to the West. The Tûranor Planet Solar departed on 27 September 2010 from Monaco. The team followed a route close to the Equator as per the Solar Navigator's planned route. After crossing the Atlantic ocean, the Panama Canal, the Pacific ocean, the Indian ocean, the Suez Canal, and the Mediterranean, the ship will reach Monte Carlo with an estimated time of arrival set to spring 2012.





Planet Solar trimaran design



Original PlanetSolar design - solar powered trimaran





THE ORIGINAL BOAT



A Harmony between Technology and Poetry.  With its impressive photovoltaic solar wings spanning 180 m2 and its wave-piercing third, or centre hull, that cuts through waves), the innovative PlanetSolar trimaran imitates the graceful landing of a swan, as it skims the water with its feet.  These are the words of the team to describe their vessel.



Indeed, in spite of its remarkable proportions (see below), and the absence of sails, it gives the impression of being an enormous immaculate, white bird of the sea; with a sense of lightness and fluidity owing to its pure design. However, underneath the poetry of its sublime silhouette, lies a boat at the forefront of technology, as envisioned by the MW-Line Ltd. Company. MW-Line has already successfully built the fleet of Aquarel Boats now running on Lake Léman as well as the solar powered catamarans used at the 2002 Swiss National Exposition, Expo.02.



Maximum research has been undertaken to insure that this futuristic craft will be able to charge its storage batteries even with a minimum amount of sunlight available. The PlanetSolar engineers must oversee the boat's propulsion system, the solar panels' energy yield and energy storage, all the materials used in the boat's construction and the environmental conditions. A 10 kW motor power would be sufficient to propel the boat to an average speed of 10 knots (18,5 km/h). The storage batteries capacity is aimed at covering navigation autonomy of at least 48 hours; without any additional energy input.

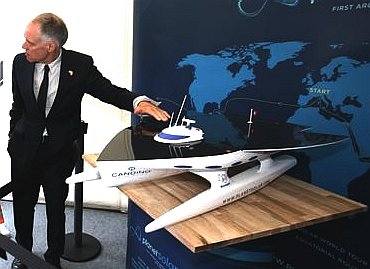

Final PlanetSolar catamaran design, model exhibit Hamburg



Final PlanetSolar model design - solar powered catamaran





The Hybrid Vehicle: The Solution for the Future



With the exception of renewable energy propulsion, PlanetSolar's additional goal is to demonstrate that the hybrid vehicle will be the ideal transportation solution for the near future. During PlanetSolar's around the world voyage with stopovers, energy used for data processing, telecommunications and automatic pilots will be generated by a fuel cell that will furnish 300 W to 400 W of power. In spite of the severe conditions encountered, this fuel cell, as well as its output, should require only a minimum amount of hydrogen to be put a board the boat.



In the longer term the PlanetSolar team had suggesting using fuel cells for far greater power. They claimed that this would lead to an increase in the boat's speed, as well as its greater autonomy. These optimal conditions will come together in time, promising faster navigation on southern route, without stopovers, in 80 days. We here at SN think that fuel cells are overrated, expensive and have a short lifespan. That is of course our opinion. It's also a pity, but who knows what the future will bring?



Christened Tûranor PlanetSolar, which means power of the sun in J.R.R Tolkien mythology, this clean vessel was launched in March 2010 in Kiel, Germany, in the shipyards of Knierim Yachtbau. Construction took 14 months to complete.





THE ACTUAL BOATS SPECIFICATIONS:



Length: 31 meters

Length with flaps: 35m
Width: 15 meters

Width with flaps: 23m

Height: 6.10 meters

Draft: 1.55m
Weight: 95 tons
Solar panels' Surface: 537 m2

PV panel efficiency: 18.8%
Installed Solar Power : 93.5 kW (127.0 HP)

Motor max power: 120Kw

Average motor consumption: 20Kw (26.8 HP)
Average Speed: 10 knots, or 18,5 km/h
Maximum Speed: 15 knots, or 27 km/h

Crew: 4
Capacity: 40 people
Cockpit: 6,50 meters above water line

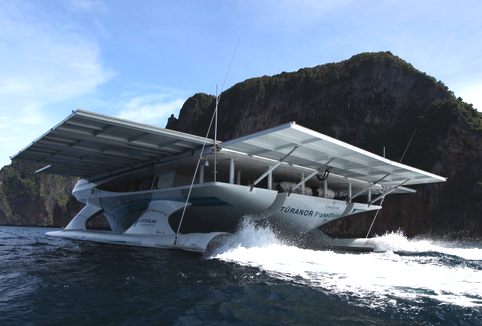

Solar powered catamaran Planet Solar rear Ko Phy Phy





The designer of PlanetSolar, Craig Loomes is from New Zealand. He has already spawned numerous innovative ship desings. The light carbon structure played its part in ensuring the completion of this incredible adventure.



PlanetSolar is currently the biggest solar ship in the world (at 17-4-12). 537 m2 of photovoltaic panel power 6 blocks of lithium-ion batteries. This technology offers maximum power and energy density, thus enabling a navigation time that is unmatched to date!



However, Solar Navigator is set to challenge that record with a more efficient hull form and a power to weight ratio more than twice that of the TPS. According to our reckoning the power to weight ratio of Planet Solar is: 93.5Kw / 95 tons = .9843Kw/ton. According to our estimates Planet Solar will have covered around 32,100 miles in 442 days, which = 72.63 miles a day, or an average speed of 2.63 knots (3mph). It's one heck of an achievement to beat, but the SN team are going to give it a go, provided that the 5th test model lives up to expectations and funding is secured.







THE ORIGINAL CREW



The project's founder will be one of the two navigators setting off to sea. An internationally acclaimed skipper will join him (whose name will not be divulged for the time being).





PlanetSolar original trimaran design team 2006



Project Launch March 2006





ORGANISATION



This project is carried out by the PlanetSolar association which remains apolitical, and is governed according to articles 60 of the Swiss Civil Code. Its Executive Committee is the representative authority for the organization and supervises the entire project.





COMMITTEE





The Executive Committee (strategic stakeholders) are:





President and Project Founder



Raphaël Domjan



Vice-President and Project Manager



Richard Mesple



Naval Architect



Mark Wüst



Energy & Environment



Pascal Goulpié



Media & Communication



Jean-Luc Vautravers



Sustainable Economy & Marketing



Paola Ghillani (provisional honorary member)



Strategy & Partnerships



Stefan Nowak









Solar catamaran in the Suez Canal, march 2012



March 2012 the PlanetSolar in the Suez Canal





SPONSORSHIP COMMITTEE





Jean-Louis AucouturierJean-Louis Aucouturier, Professor Emeritus at the ENSEIRB Graduate Engineering School - Bordeaux Science and Technology University and President-Founder of the Electric Boats of France (l'Association française pour le bateau électrique - AFBE).

«I believe that solar energy represents the future. It could lead to better conservation of the planet. Therefore, the PlanetSolar project would be an excellent demonstration to the general public; they can become fully aware of this earth-friendly reality.»


Members





Jean-Luc Van Den HeedeJean-Luc Van Den Heede, Navigator and Record Holder of the solo non-stop westward circumnavigation by sailboat. Ten Cape Horn passages, four around the worldsailing tours; two of these tours in the Vendée Globe Race.

«To help insure the future of our planet, man should use alternative energies more and more because its obvious that one day, fossil fuel shortages will compel the world to use them. We have two free energies that we must take advantage of now: wind and the sun. Based on my own five, solo around the world tours, of which one was against the winds and counter dominant currents, powered only by wind, it appears quite logical to me to support a solar energy powered around the world tour. This technological adventure should have great appeal to all those who are taking care of our planet. I hope that PlanetSolar will find the necessary partners so they can successfully travel the Vendée Globe route, while setting an unprecedented time record. Be sure to join me in this ambitious project!»







Planet Solar catamaran January 2012 Abu_dhabi, wings extended



January 2012 Abu_dhabi, wings extended







Jean VerneJean Verne, Great-Grandson of the writer, Jules Verne.



« The PlanetSolar project is part of the Vernien endeavors; humanitys hope for a better future in a world that seems to be calling into question all the dangers that threaten it. While reading about this research program on innovative vehicles that are safe for the environment, my thoughts turned to Jules Vernes novel, «The Begums Fortune», which brings to the forefront a vision of short term profit making at the cost of destruction; a vision that considers both nature and mankind. Even though it is a bit exaggerated in certain aspects, this ecological opus depicts all of our own contradictions and hopes. In the spirit of the PlanetSolar project that calls upon scientists, technicians, industries, financiers and scholars who are working together on an "extraordinary voyage into known and unknown worlds," I am writing these few words at the same time our society is asking the unthinkable question of its own survival. A special thanks to my Great-Grandfather Jules Verne who has given the PlanetSolar team the idea, the will, the audacity and who has inspired such an exciting, valuable project.»





Fernand Cuche Fernand Cuche

Fernand Cuche, Conseiller d'Etat neuchâtelois

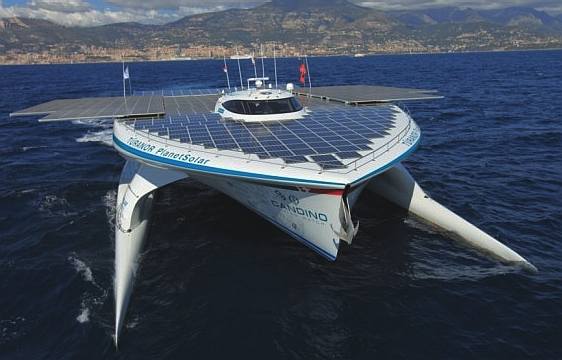

Turanor Planet Solar catamaran front view





ACTUAL SPONSORSHIP



  • 1 to 3 main sponsors, whose brand names/logos will appear on the boat. Sponsors will share the ownership of the boat. Participating sponsors will be committed to long term and non-conventional sponsoring support.

  • The brand name/logo of the sponsors and official partners will appear on official PlanetSolar clothing and on the official PlanetSolar website.

  • Service suppliers.



Private and Public Donations



General Conditions



The PlanetSolar project's sponsors and partners share in a global view towards the planet's and mankind's sustainable development. They are ready to undertake the challenges of this project. Their collective philosophy meets and respects all elements of the PlanetSolar project.



Sustainable Development of the Project



In order to reach its goals, especially concerning communication towards the general public, the project will be highly visible at the international level over several years time. After the boats first around the world tour, without stopovers, the boat will be kept in use and continue to attain high standard performance. It will also continue in its role as a renewable energy laboratory.

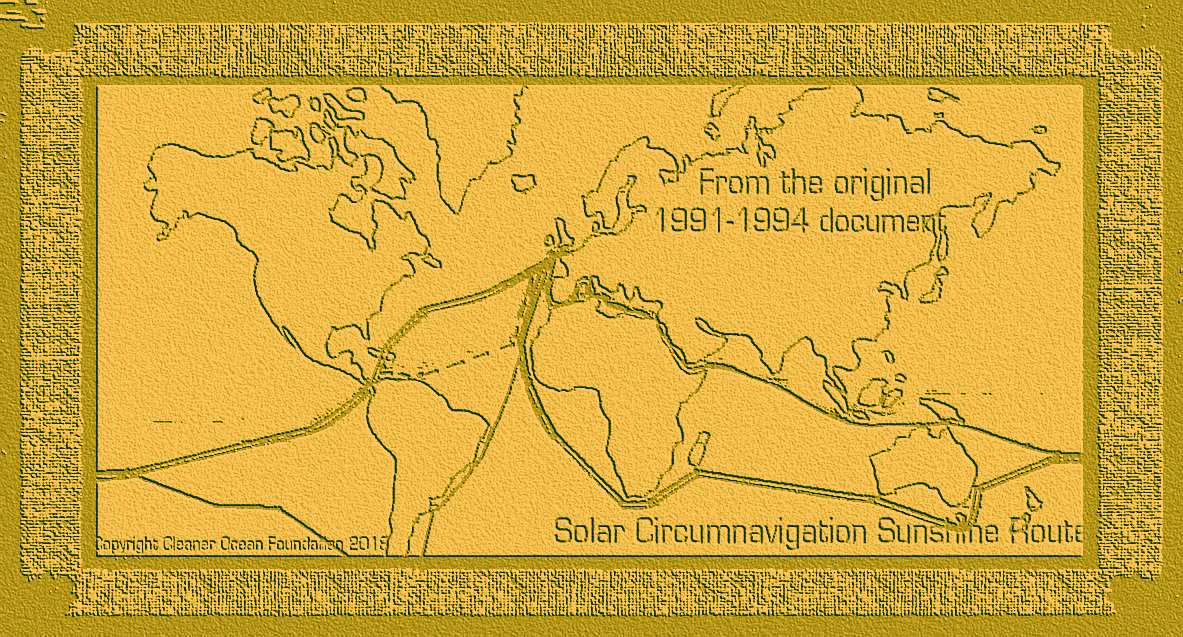

World route map





PlanetSolar


Case Postale 70
CH-2009 Neuchâtel

Postal Account: 17-450479-6

By E-mail : info@planetsolar.org
Partners: partenaires@planetsolar.org
Press: press@planetsolar.org





Design concept - Construction Raphael Domjan  PROMOTIONAL TOUR 2012

English - Swiss - French - History - Links - Homecoming



2013 Geneva University Deepwater Gulf Expedition



LondonParis - Rio de Janeiro - Gerard d'Arboville

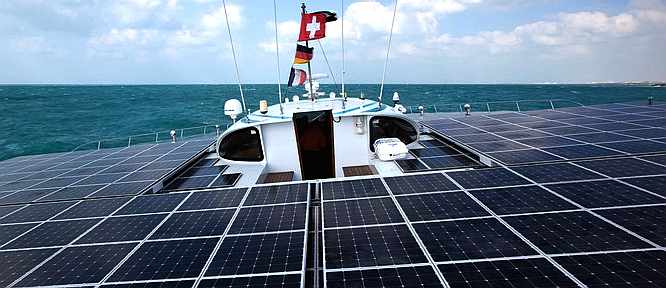

Planet Solar catamaran deck horizon Abu Dhabi







Other European Solar Boats -









"Only those who are crazy enough to think they can change the world, will!"  -  Henry Dunant







Solar Navigator twin hull SWATH catamaran test model



The Solar Navigator - 2nd test model 1995



Stop Press: The 6th Solar Navigator design is now undergoing evaluation tests the aim being to improve on the record set by the current record holders: PlanetSolar. The latest design is quite a looker, packed with high tech features and is the subject of a patent applied for in 2013 and published in 2014
