DRIVETRAIN FOR SAFE AUTONOMOUS BOATS

Advanced Robotic Solar powered Trimaran





MOTOR DRIVETRAIN CONFIGURATION - General

Regardless of motor choice, the number of motors and the arrangement of those motors to give different outputs to cater for changing weather conditions, etc, is important. An electric motor is only efficient at relatively high revolutions. The simplest way to explain this is to consider the resistance of the windings and amperage load for standing starts.  The amperage draw soars because it is a dead short situation - damaging batteries. As the motor revolutions increase, the voltage rises and amperage draw reduces until the design harmonic is reached, giving the highest efficiency. The practical limitations of any DC motor are the ability of the armature not to fling apart and brushed commutation wear. (Thus, AC, or synchronous DC motors are well worth looking at.)



It follows that a large motor turning slowly while cruising, will not be in its efficient range, while a small motor spinning wildly trying to provide power for emergencies, will burn out and could fail physically. The paradox is that we want slow turning propellers, because propellers are in their most efficient range at slow revolutions. SolarNavigator's propeller will be spinning in the 500 rpm range while cruising. That is for a conventional rear mounted propeller. Post mounted static tests have shown that 70% + conversion of electrical energy to thrust is possible using a long narrow bladed propeller. Most boat propellers have difficulty achieving more than 50% efficiencies. They are just throwing energy away.





Slipery hulls improve vessel performance, micro bubble librication





MATCHING MEDIUM



The way to match propeller rpm to motor rpm is to use a gearbox. But here again we have the problem of drag (mechanical losses) from all those meshing gears, bearings and lubricating oil. If that is, we used an automotive type gearbox. Automotive gearboxes are woefully inefficient, especially the automatic variety. CVTs are much better and Perbury boxes offer promising solutions, still far off for our purposes.



Chain drive is by far the most efficient @ 95% but needs lubrication for longevity. Belt drive is 90% efficient without lubrication, and the properties of the belt, lends itself to our need for flexibility and switch ability. We do not want lay-shafts soaking up energy idling in bearings as in conventional gearboxes. We want positive engagement and positive disengagement. Fewer moving parts and simplicity.





FLEXIBILITY



To make the most of excess energy at peak charge times and to use stored energy for the best range, it is sometimes necessary to engage a higher output motor with reduced gearing - when excess energy cannot be stored, and at other times, when running on stored energy for prolonged periods, to engage a lower output motor with higher gearing. The graph below makes this plain. A designer should aim to keep motor reduction ratio choice in the crimson band for peak efficiency. This is basic good design.





SECONDARY MOTORS



For an ultra reliable autonomous robot boat, we need back-up motors. If one motor set fails, we might engage another set. Compared to the long term energy savings, the additional setup costs are insignificant.





EMERGENCY MOTORS



Where we are cruising at relatively slow speeds, there are times when more power is needed, such as in tidal conditions, to avoid collisions, when docking, or just because we are late. By having the ability to engage and disengage motor sets without mechanical losses from layshafts and bearings, the SolarNavigator can operate at peak efficiency in real time. We cannot show you how we achieve this here because the method is patentable.





A GRAPH USED TO ESTIMATE BEST MOTOR REDUCTION RATIOS FOR DC MOTOR COMBINATIONS





VOLTS

RPM

3:1

knots

4:1

knots

5:1

knots

6:1

knots

7:1

knots

8:1

knots

9:1

knots

Efficiency%

12

1,000

333

4

250

3

200

2.4

166

2

143

1.7

125

1.5

111

1.33

25

18

1,500

500

6

375

4.5

300

3.6

250

3

214

2.5

187

2.25

166

2

37

24

2,000

666

8

500

6

400

4.8

333

4

286

3.4

250

3

222

2.66

50

30

2,500

832

10

625

7.5

500

6

416

5

357

4.2

312

3.75

277

3.33

62

36

3,000

1000

12

750

9

600

7.2

500

6

428

5.1

375

4.5

333

4

75

42

3,500

1165

14

875

10.5

700

8.4

583

7

500

6

437

5.25

388

4.66

88

48

4,000

1332

16

1000

12

800

9.6

666

8

571

6.8

500

6

444

5.33

92

54

4,500

1498

18

1125

13.5

900

10.8

750

9

642

7.6

562

6.75

500

6

-

60

5,000

1665

20

1250

15

1000

12

833

10

714

8.5

625

7.5

555

6.66

-

66

5,500

1830

22

1375

16.5

1100

13.2

917

11

785

9.3

687

8.25

610

7.32

-

72

6,000

2000

24

1500

18

1200

14.4

1000

12

856

10.1

750

9.0

666

7.98

-







Motor/Kw

Configuration

60Kw (80.4hp)

40Kw (53.6hp)

30Kw (40.2hp)

20Kw (26.8hp)

15Kw (20.1hp)

10Kw (13.3hp)

7.5Kw (10.0hp)









ROBOTIC RELIABILITY



For an autonomous robot nothing is more important than dependability. Once a system fails there is no human to fix it.



STAND BY FAILSAFE



Should any one configuration fail, the proposed transmission design will allow several options to keep the craft powered with a greater degree of flexibility than most boats suffer when running as intended.



The SolarNavigator team hope to be able to run tests on as many of the above and report those findings to the marine community in the years ahead.

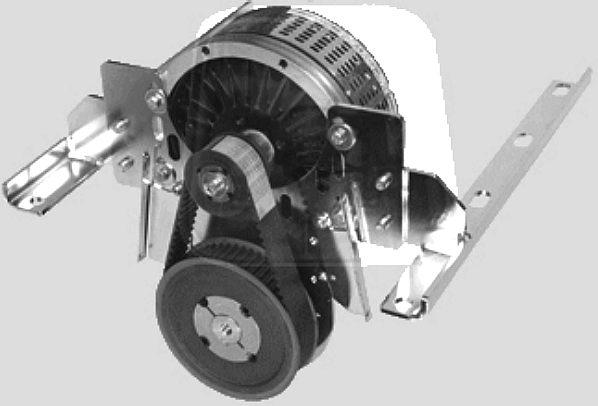

Very simple Lynch (Agni) motor belt drive reduction
