SUN TRACKER'S WINGS







WING ACTUATORS

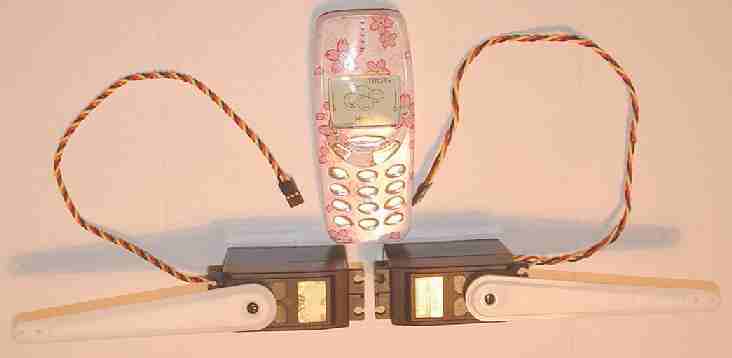

Jumbo size Hitec model sun tracker servo actuators.

Jumbo HiTec Sail Servos - HS-715BB - 14.5kg/cm



The giant (by radio control standards) servos above are shown adjacent to a Nokia 3310 mobile phone to give an idea of the scale.  The arms are 12cm long - perfect for lifting a bank of solar panels (wing).



Our local Model Aerodrome in Seaside Road, Eastbourne, supplied these beauties, taking the trouble to source one unit from afar - not the kind of thing you are asked for every day.  Thanks to Dave and Steve for helping us out of a tough spot.  The Model Aerodrome were also able to match a reduction gearbox shown elsewhere on this site under catamaran model drive-train.



CONTROL BOARDS



On this page we also look at two electronic design solutions for control of our wing angle. One is an analogue comparator based circuit, the other a digital computer chip based circuit. They both do the same thing, but with different features.





SOLAR TRACKING THEORY & PRACTICAL EXAMPLES

SOLAR WING PANEL ACTUATORS & CONTROL KITS

ELECTRONIC COMPUTER CHIP SUN TRACKING SOLUTION

MPPT ELECTRONIC SUN TRACKER PCB DEVELOPMENT















LM339 COMPARATOR BASED SUN TRACKER



There are many ways of arranging for an array of panels to track the sun. The description below is for a DIY control board that seems to work quite well. But there are dozens of designs from enthusiastic roboteers. See the links below.









LM339 BASED SUN TRACKER DIY COMPONENT LIST



dU1/U2 - LM339 quad comparator
Q1 - TIP42C Power Transistor
Q2 - TIP41C Power Transistor
Q3 - 2N3906 Transistor
Q4 - 2N3904 Transistor
R1 - 1meg ohm
R2 - 1k ohm trim pot
R3 - 10k ohm
R4 - 10k ohm
R5 - 10k ohm
R6 - 4.7k ohm
R7 - 2.7k ohm
C1 - 10n ceramic capacitor
M - DC motor up to 1amp
LEDs - 5mm 563nm Hi Green Water Clear

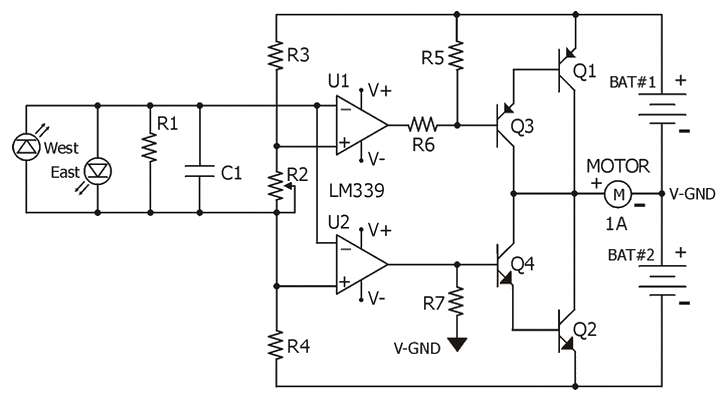

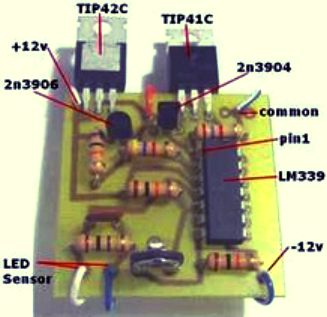

Circuit diagram for the LM339 quad comparator based sun tracker



Circuit diagram for the LM339 quad comparator based sun tracker

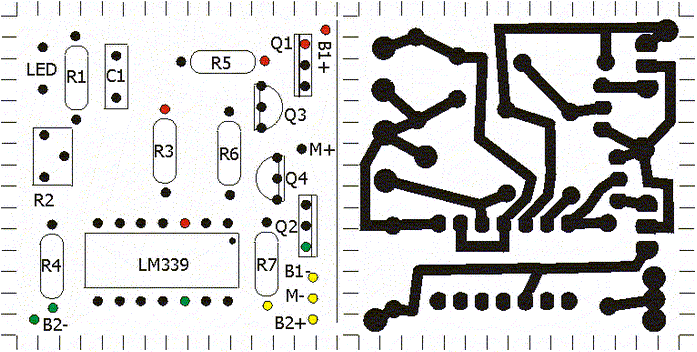

Template to drill and etch your own PCB (37mm x 37mm)



Template to drill and etch your own PCB (37mm x 37mm)







The LED arrangement in the LM339 circuit below uses two rows of three LEDs with each LED connected in parallel, the two rows are connected in parallel but reversed polarity. The sensor array is made with three west LEDs and three east LEDs. A 1meg resistor and a 10n ceramic capacitor (103z) are also in parallel with the sensor. The sensor LEDs provide input voltage for two comparators on the LM339 chip with the variable resistor R2 providing a "dead zone" or sensitivity adjustment. Each comparator output is fed into a transistor Darlington pair which in turn drives the DC motor. The rail voltages are provided by two batteries connected in series with the center tap providing the ground reference.



The developers at Green Watts have tested this circuit with 2 single cell lithium-ion batteries providing +/- 4.2 volts and two 12 volt lead batteries, the LM339 is rated for input voltages from +/- 2 volts to +/- 18 volts.





MMT SCIENTIFIC KIT



This special COMPUTER CHIP CONTROLLED SOLAR TRACKER CIRCUIT KIT (Catalog #ST2-HD-PIX) from MTM Scientific is a new product they are making available on a limited basis for advanced electronic hobbyists. Identical in function to their other Solar Tracker Kits, this kit contains all the electrical components for building the circuit (shown above) to automatically find and follow the sun across the sky.



Just like their other kits, this tracker circuit finds the sun at dawn, follows the sun during the day, and resets to home at nightfall for the next day. This kit is ideal for driving a single axis solar tracker with a 12 VDC gear motor or linear actuator that they don't provide. Also included, but not shown, are the same 2 photocell sensors, 2 limit switches and 20+ page booklet they include with all their Solar Tracker Kits.



So what is different about this kit? This new version of our Solar Tracker Kit is controlled by a PIC micro-controller running a computer program written in PICAXE BASIC. Much more information about the Picaxe family of micro-controllers is available at Phil Anderson's website (www.phanderson.com). The Picaxe Chip can be reprogrammed using the serial port of your computer using the Picaxe Development Platform Software (Download and Installation required). Obviously that would be a project for advanced hobbyists capable of reading and writing computer line code and reading circuit diagrams. Note: We provide the Picaxe chip already programmed for this kit.

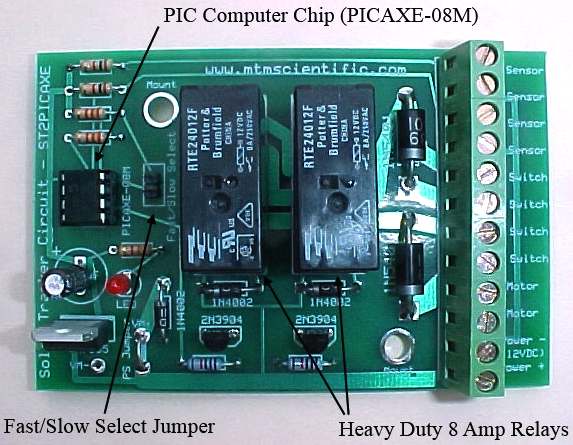

PIC computer chip based sun tracker kit



PIC computer chip based sun tracker kit



Are there any new features?



Yes, two new features were added in the software code:



1) The Tracker has a FAST/SLOW update rate limit which only allows position changes once every 1 minute, or once every 10 minutes. This feature reduces wear and tear on the mechanical and electrical hardware.



2) The Tracker has a software feature which requires all motion updates to be of 1/10 second duration or more, to reduce 'jogging' and 'hunting'... essentially software controlled hysteresis.



What are some ideas for advanced applications? Advanced hobbyists might consider writing code to do optimized sunlight threshold detection, smart parking, historical data analysis, bright cloud ignore, heliostat applications and really... just about anything imaginable. MMT are interested to know more about your code improvements... a key reason they are offering this kit!  We're sure that MMT would like the wing application on the SolarNavigator.



Please note: This circuit kit is for advanced electronic hobbyists interested in experimenting with PIC computer control of Solar Trackers. This kit will control a Solar Tracker after assembly, similar to their standard kits. However modifying the computer code will require advanced skills such as line coding, serial port communication and self-directed project development. This kit includes a supplementary handout with special circuit diagram, additional details and a listing of the PICAXE BASIC source code.









HYDRAULIC v MECHANICALLY GEARED SERVOS



1. HYDRAULIC RAM

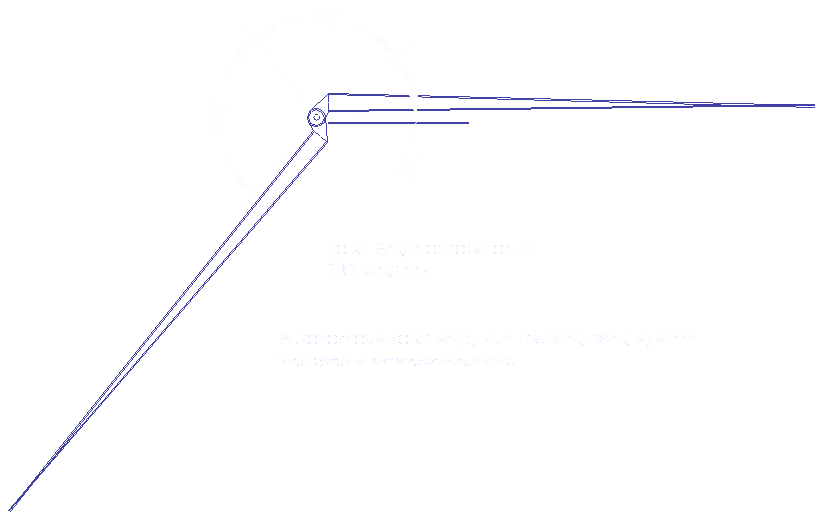

The next question is what is the best mechanical design to move the wing panels? Hydraulic rams are relatively cheap and come in almost any shape and size. So they are the obvious first choice for simplicity, coupled to an electric pump. But, a hydraulic ram's linear action is restrictive, if the movement of the wings is 230 degrees (as in this case - see diagram above), a simple ram/lever arrangement is not going to work. A chain and wheel system to convert the simple linear ram movement into a rotary one is an option we might consider - but needs an idler pulley wheel - and that means more bearings: bearings mean losses in efficiency.



We need efficiency in the movement, with 16,800 readings giving us a likely 5,600 movements to track the sun over 280 days. Multiply the expected 5,600 movements x motor wattage x time and that gives us the total energy required over the voyage for sun tracking, which in turn allows us to estimate the net increase in collected energy of between 12-18%. A worthwhile increase.



Worm gear reduction servo motor



2. SERVO GEAR MOTOR



The design of this robot ship must exceed the life of the expedition to encompass long term scientific oceanographic surveys. Such surveys might last for 12 months or more. The design of the ship must therefore be for trouble free operation of at least five years, but preferably 10 years or more - without more than routine servicing in port. Thus, we are looking at a movement capable of 75,000 incremental adjustments (as 7,300 full open-close actions).

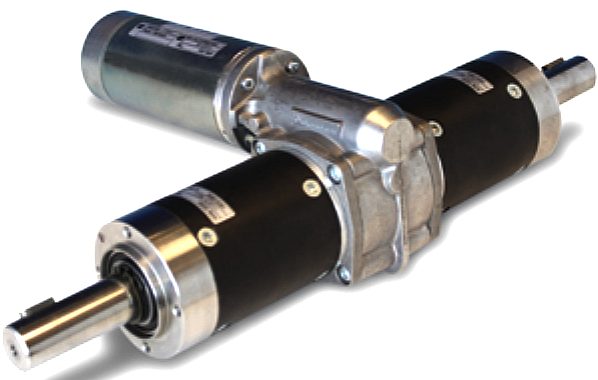

The picture above is of the innovative Dunkermotor Bifurcated Wormetary drive that combines a right angle worm gear to turn the corner with a pair of efficient planetary gearboxes for a total reduction ratio of 529:1. Overall reductions up to 50,000:1 can be achieved with the Wormetary configuration. The gearboxes share the load through beefy 25mm output shafts and each side is rated for a continuous output torque of 160 N-m (1,416 in-lbs) and peak outputs of 320 N-m (2,832 in-lbs). For a solar tracking application, the Wormetary gearing is non-backdrivable, which is a benefit in the presence of wind loading.



In this example the 60 volt brushless motor shown above, of 530 Watts (0.71 hp) x 2 wings [x 560 x 10mins / 60] = 99Kw/hrs.



From the graph below we can assume a daily energy collection average of 50kw/hrs/day x 280 days, to equal = 14,000Kw/hrs. That is without solar tracking. Now add a 12% increase = 1680Kw/hrs and take away the 99Kw/hrs used by the tracking motors, gives us a 1,590Kw/hrs increase over the 280 day expedition. If the suntracker system yielded an 18% increase in total collection, that would be 2,421 extra kilowatt/hours. Either example shows a significant performance improvement, provided that the additional weight of the system does not add significantly to the drag of this autonomous vessel.







A GRAPH USED AS A DEVELOPMENT TOOL TO ESTIMATE SOLAR PANEL AREA FOR A GIVEN PERFORMANCE





Waypoint

Latitude

Sun/Mins

Leg/Mins

Kw/Hrs @ 18% m2

X panel area ?

Waypoint

Kw per hr

Gibralta

36

252

264

47.52

253.44

Gibralta

10.56

Canary Is

28

276

297

53.46

285.12

Canary Is

11.88

Lesser Ant

14

318

325.5

58.59

312.48

Lesser Ant

13.02

Panama

9

333

331.5

59.67

318.24

Panama

13.26

Galapagos

10

330

322.5

58.05

309.6

Galapagos

12.9

Maquesas

15

315

310.5

55.89

298.08

Maquesas

12.42

Tahiti

18

306

304.5

54.81

292.32

Tahiti

12.18

Tonga

19

303

306

55.08

293.76

Tonga

12.24

Fiji

17

309

321

57.78

308.16

Fiji

12.84

Solomon

9

333

333

59.94

319.68

Solomon

13.32

Torres

9

333

328.5

59.13

315.36

Torres

13.14

Darwin

12

324

327

58.86

313.92

Darwin

13.08

Christmas

10

330

337.5

60.75

324

Christmas

13.5

Chagos

5

345

334.5

60.21

321.12

Chagos

13.38

Aden

12

324

313.5

56.43

300.96

Aden

12.54

Port Said

19

303

274.5

49.41

263.52

Port Said

10.98

Sicily

38

246

244.5

44.01

234.72

Sicily

9.78

Palma

39

243

247.5

44.55

237.6

Palma

9.90

Gibralta

36

252

247.5

44.55

237.6

Gibralta

9.90





















An off the shelf single axis sensor/motor sun tracker

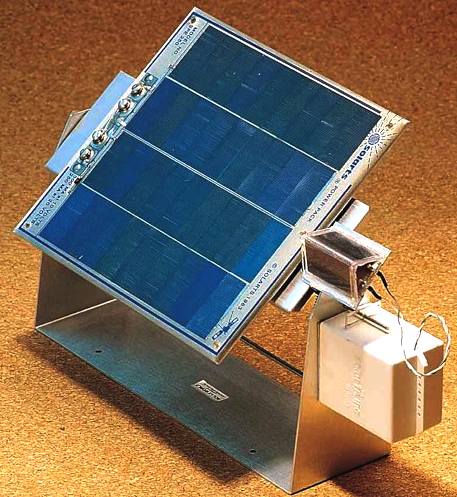

An off the shelf single axis sensor/motor sun tracker sold as an educational toy
