MAXON DC MOTORS

The World's most Advanced Autonomous Solar powered Trimaran

Snav planet earth lattitude and longitude grid





SWITZERLAND

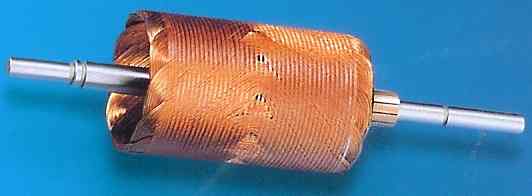

Swiss ironless motor armature

Maxon Ironless Armature





A Swiss company based in Sachseln near Lucerne, making high-precision drive systems.  These motors can be used for a wide range of applications from high-tech medicine to robotics.  Maxon is now launching EC-max motors, a modular program of up to 120 Watt power, to offer its customers even more benefits for their projects.


Maxon EC-max motors are electronically commutated DC motors. Designed as internal motors, their shafts turn with no detent thanks to an ironless winding. The worldwide patented winding, System maxon, offers even more benefits, such as high dynamism, low inductance, high efficiency and extreme reliability.


This robust product family features five motor sizes with diameters of 16, 22, 30, 35 and 40 mm. Each motor type is available in two lengths, a short or a long one which is almost twice as powerful. The motor can be combined with a gearhead, encoder and/or brakes depending on the application. Given that motors have several types of winding, gearheads have several reduction ratios and encoders have a wide range of pulses, the variety of combinations is an astonishing 10,000 or more.



Maxon Motor AG specializes in the development, manufacturing and sales of high quality drive components and systems under the trade mark maxon motor. The company's newly established manufacturing facility in the heart of Switzerland features the most modern equipment. All key components are manufactured in-house with custom design machinery.  Their key technologies are three winding processes, motor manufacture and gearhead production as well as the application of high-tech ceramics and magnetic encoder components.



Maxon motor and gearbox for the SolarNavigator model

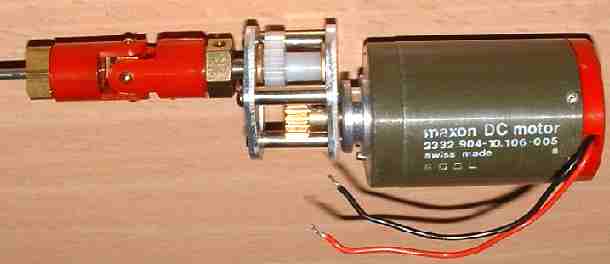

Maxon dc motor - 2:1 reduction & coupling - Solar Navigator 1/20 drivetrain



UNITED KINGDOM

It is a measure of Maxon Motor UK's success that much larger premises have become necessary within just three years of being established as UK subsidiary of the Swiss-based company.  This is well ahead of the anticipated growth schedule.  The new address, Maxon House, is still on Hogwood Lane in Finchampstead, Berkshire, but has 1137m2 of workspace - almost three times the size of the original premises.

Acknowledged as a leading manufacturer of precision electric motors and drives, Maxon Motor products are to be found in just about every application imaginable.  From the new premises Maxon Motor UK will be better placed to deliver the expanding and seemingly endless range for which the company enjoys an unrivalled reputation.  Keith Ellenden, CEO of Maxon Motor UK, says: "This success is especially satisfying because it has been achieved in a tough economic climate.

Key factors have been the depth of range that offers a good choice for each application, reliability.  Maxon's engineers are recognised as some of the most knowledgeable in the industry.

Working closely with customers' design teams, they ensure the optimum solution to any problem whether by pinpointing the perfect 'off-the-shelf' motor or by designing a tailor-made product exclusive to the application.

NASA MARS ROVER MOTORS

Maxon motor provided 39 miniature motors for two new Mars rovers, sent to the Red planet in 2003.  The motors, which are just 20 millimetres in diameter, have a long life expectancy and are designed to withstand the extreme temperatures they will encounter on Mars.

“We build motors which are very light, can withstand extremes and are very efficient,” Chief Executive Jürgen Meyer told swissinfo.  “They are twice as efficient as a normal motor. They will be able to cope with the temperatures which can be as low as minus 100 degrees Celsius.”  Maxon has been collaborating with the Mars missions since 1992 when Nasa asked the company to supply motors for the Sojourner mission. Eleven Maxon motors were used in the 1997 Sojourner rover. The new rovers are larger and will have 39 motors, each costing about SFr200 ($118).

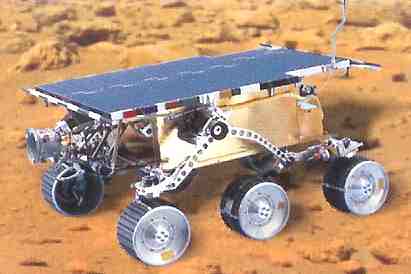

Mars rover robot explorer

NASA Mars Rover

The new rovers will have far greater mobility than their 1997 predecessor and will be able to travel about 100 metres each Martian day (which is 41 minutes longer than an Earth day).  Each robot will carry a sophisticated set of instruments, which will analyse rocks and soil to explore Mars’ climate history and search for signs of water and life. Surface operations will continue for at least 90 Martian days.

The machines will be identical to each other but will land on different regions of Mars. To make a safe landing, a supersonic parachute will slow their descent. Then airbags will inflate around the craft at about 300 metres above the Martian surface.  The first Mars Exploration Rover spacecraft was scheduled to be launched from Cape Canaveral, Florida in June 2003. It will enter the Martian atmosphere in January 2004. The second craft will soon follow.

Over the years, Maxon has supplied about 3,000 motors for a variety of Nasa projects.  Maxon builds micro-motors between six and 90 millimetres in diameter for a wide range of high tech and high precision products. The company, founded in 1961, has 1,200 employees in Switzerland and abroad.
