A trimaran is a multihull boat consisting of a main hull and two smaller outrigger hulls (amas), attached to the main hull with lateral struts (akas). The design and names for the trimaran components are derived from the original proa constructed by native Pacific Islanders.

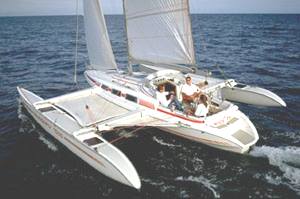

Quorning Boats was founded in 1967 by Borge Quorning to build high quality boats with good performance from 16' up to 52" high-tech yachts, but since 1981 production has been concentrated on the Dragonfly Trimarans only.
THE BENEFITS OF SAILING TRIMARANS
HISTORY
The first trimarans were built by indigenous Polynesians almost 4,000 years ago, and much of the current terminology is inherited from them. Multihull sailboats (catamarans and trimarans) gained favor during the 1960s and 1970s. Modern recreational trimarans are rooted in the same homebuilt tradition as other multihulls, though there are a number of production models now on the market, such as the folding, trailerable trimarans from Corsair Marine, Quorning Boats, Performance Cruising Inc., and Ian Farrier.
The Trimaran design is also becoming more widespread as a passenger ferry. Designs which can carry over 300 cars are now in production. The trimaran concept has also been considered for modern warships. The RV Triton was commissioned by UK defence research company QinetiQ in 2000. In October 2005, the U.S. Navy commissioned for evaluation a General Dynamics Littoral Combat Ship (LCS) trimaran designed by Austal.
CONSTRUCTION
Trimarans have a number of advantages over comparable monohulls (conventional, single-hulled sailboats). Given two boats of the same length, the trimaran has a shallower draft, a wider beam, less hull area, and is able to fly more sail area. In addition, because of the wide beam, trimarans do not need the weighted keel required in monohulls. As a result, the trimaran offers much better straight-line performance than a monohull, is able to sail in shallower water, and maintains its stability in stronger winds. However, its wider beam makes it a little more cumbersome to maneuver, so tacking and jibing can be trickier, and the narrower hulls provide less living space than an equivalently-sized monohull.
As the righting moment (the force that resists the opposite torque of the wind on the sails) is produced by a float on either side called an ama and not a heavy protruding keel, trimarans are lighter and faster than a monohull of equivalent length. A lightweight retractable keel, referred to as a centerboard is often employed to resist lateral movement, making many models easily beachable.
Most trimarans are nearly impossible to flip sideways given a reasonable degree of caution, however, trimarans can reach speeds so great in a storm that they can plow into a wave and flip end-over-end. This hazard is especially dangerous for a multihull because of their wide beam. The front of the boat, often covered by trampoline, acts as a giant paddle rather than a narrow monohull would. To avoid this unfortunate scenario owners of trimarans are advised to use trampolines with a large weave and employ parachute drogues and sea anchors whenever appropriate.

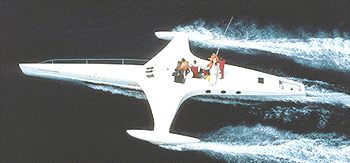

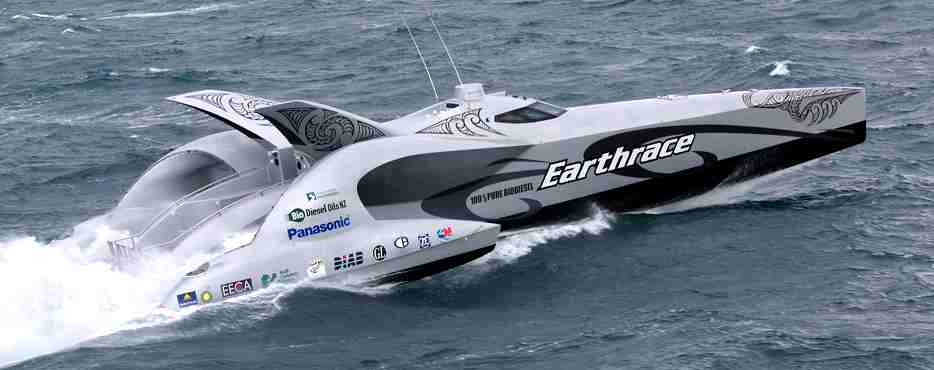

Motor powered trimaran designed by Nigel Irens
SAFETY
Overall, trimarans are much safer than a monohull as the lack of a heavy keel, combined with the two (usually sealed) amas makes for a nearly unsinkable boat. Because of their stability and safety, trimarans such as the Challenger class have become popular with sailors who have restricted mobility.
Potential buyers of trimarans should look for one that is designed with amas with multiple sealed partitions, controls that all run to the cockpit, a collision bulkhead, partial or full cockpit coverings or windshields, and drain holes in the cockpit that can adequately drain the cockpit quickly, among other things.
SEAWORTHINESS
The most important feature of any boat, its seaworthiness, is the most difficult one to assess. Seaworthiness is simply the capability of a boat to afford the crew safety and comfort in any condition. But it can take time before the seaworthiness of a new type of craft is fully understood even by designers and sailors. Especially so, since there are infinite possible combinations of wind, sea and hazard that a boat might be exposed to by any crew, in any state, attempting to execute any plan.
In the late 1950s when the pioneer catamaran designer, builder and sailor, James Wharram, was sailing catamarans across the oceans, very little was known about the seaworthiness of these craft. In the 60s and 70s offshore catamaran sailing and racing went up a steep learning curve with many "bleeding edge" multihulls crashing out spectacularly. This confirmed suspicions voiced at the time, that multihulls were unsafe. In the same period much more sturdy and secure designs were built and began safely to clock up ocean miles. However, without today's design know-how, many lacked performance. This confirmed suspicions that multihulls do not sail well to windward.
Now, thirty years on, multihull design has matured through the prolonged exposure of thousands of different craft to a generation of world-wide sailing experience. Safety records over the years are second to none and consequently, catamarans and trimarans have earned their place in the mainstream of the boat market. Even so they are still viewed with distrust by many of the seafaring community. However, there is no reason to doubt that the glowing safety record of multihulls will not continue to grow, and that misgivings will diminish with more time.
So far it can be said with total confidence that a multihull, as a type of vessel, is at least as safe in any condition as a monohull. Possibly multihulls are safer. Naturally, they have different strengths and weaknesses than monohulls in their "capability to afford comfort and safety in any conditions." No boat is ever 100% seaworthy.
RECORDS
The British sailor Ellen McArthur set a new world record for solo circumnavigation of the world in her trimaran B&Q/Castorama, arriving in February 2005 after just over 71 days at sea.

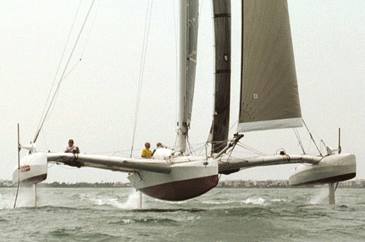

Flying boat - trimaran hydrofoil racer
CHOOSING YOUR BOAT
It is often accurately remarked that when you buy a boat, you can choose from any two of the following three: Performance; Comfort; Economy, but that you can never have all three. There are no very fast, cheap, luxurious boats out there. Probably the same is true of cars and horses as well, but we should keep the discussion to boats. Multihulls have more potential to offer speed and comfort than monohulls, this is why they are such compelling craft, so it is particularly important to see how these trade off against each other and against cost. The bottom line for any of us who venture on the sea, though, is seaworthiness: find the safety of multihulls and monohulls compared in these sections.
Speed is fun. Thrilling even, and not exclusively for the race course. For some, overhauling other craft is always delicious meat for the ego. But apart from that, there is a rich pleasure in feeling a loved boat get up on her legs in a breeze. Faster passage-making means extended cruising range and possibly less crew fatigue. Speedy boats can better skirt storms to avoid exposure to danger. However, few would want speed at any price.
The cost of speed might be in the boat price, crew discomfort or increased risk of mishap. Most will be interested in what it takes to get maximum performance in line with other wishes, like lots of cabin space and maximum seaworthiness. Good performance should be had on any day and on any course too.

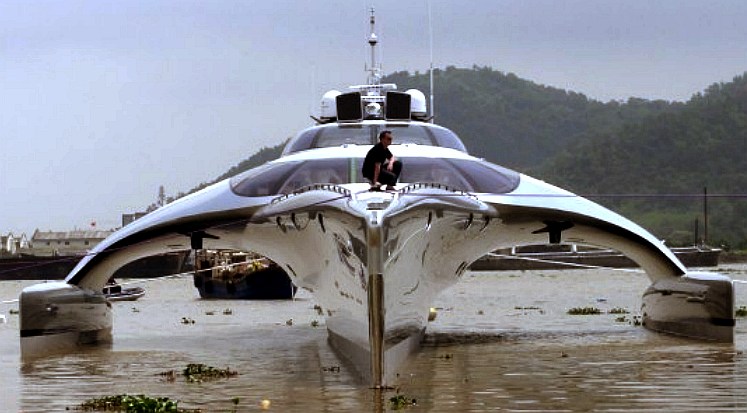

POWER TRIMARANS
A power trimaran is kind of an odd looking bird when you first look at one. Long skinny hull with very short amas. We have gotten used to seeing amas that are more than half as long as the main hull in sailing vessels. But of course the power tri needs a much smaller righting moment since there is no sail to rotate the boat around it's axis. They are much more stable that the equivalent monohull of course, and most of the recent long range power boat records have been set by trimarans of this type. An non stop crossing of the pacific was done several years ago with a pair of slightly modified 9.9 yamaha engines and the UK navy has had a development program in place for some years and has begun to acquire a few.
MULTIHULL LINKS:
You can write to us at: Foss
Quay Phone or fax us on: Tel:
+44 (0)1752 823900
You get a boat that pleases racers as well as cruisers. Multi-Winds International, LLC., uses the highest standards and materials, making boats that are easy to sail, fast, and comfortable.
MULTI WINDS INTERNATIONAL, LLC 655
Maid Marion Hill
Multihulls & WIG-craft designs for DIY and profs
We are very aware of sailor's needs. We bring two types of experience into our catamaran designs. We have designed multi hulls since 1980. And we have lived in our "PELICAN" (one of our designs), on the Mediterranean sea for 11 years. Our portfolio includes a wide range of catamarans.

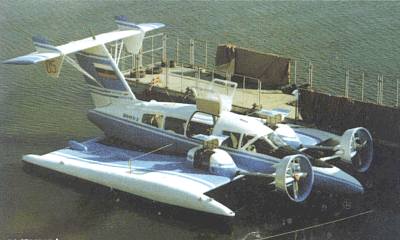

Ground effect plane/boat
At K-designs, we design fast water craft. We have been consulting in this industry for over 25 years and we sell multi-hull construction plans for home builders and professionals alike. New designs are developed on a regular base . Almost all boats are extreme light weight wood/glass/epoxy composite constructions.
http://www.ikarus342000.com/index.htm Email Bernd@ikarus342000.com
INSPIRATION 1050 LUXURY CRUISING CATAMARAN - KITS avail
Goondi Street, Rainbow Beach QLD, Australia 4581 Ph (07) 5486 3393 http://www.catamaransaustralia.com 52 Manooka Drive Rainbow Beach QLD Australia 4581 Ph (07) 5486 3610 Fax (07) 5486 3690
Email gsmarine@yahoo.com SUNSET HARBOUR - Carlo Point, Rainbow Beach QLD Australia 4581 Phone (07) 5486 3610 http://www.usail2.com
San Francisco Bay Area Multihull Association (BAMA)
Stephan
Wendl "BAMA"

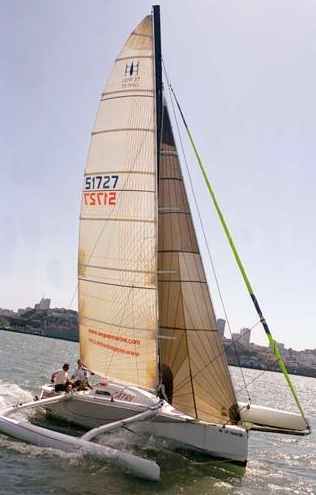

The designers and builders of the Aegean Catri 27 wanted to make a superior folding, trailerable trimaran that advanced the 'state of the art.' It had to be a competitively-priced boat that would beat the competition in all other qualities, including offering luxurious accommodations. The first prototype of this boat, called the Catri 26, was built and tested in Europe in 1997 where it showed higher speeds and smoother rides than the best racing trimarans of its class: the Corsair F28R and Dragonfly 920.

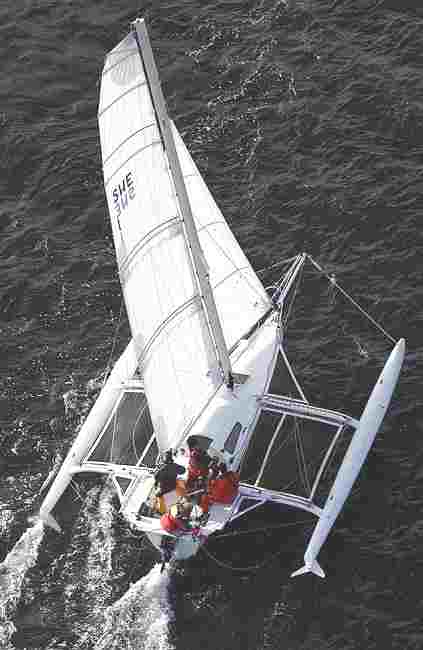

Catri 27' trimaran
Packet
of Fourteen Study Plans!!!
Dick
Newick

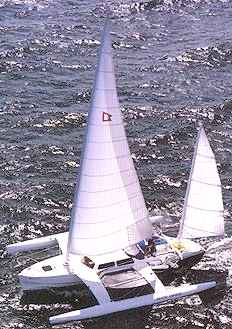

White Wings 36' trimaran
DRAGONFLY
SAILBOATS, CO. 103 Center Street, Garwood, NJ 07027
Hydrovisions High Performance Sailing Outriggers
Hydrovisions
Inc., 1338 N. Melrose Drive, Unit K., Vista, California
92083
raptor16@sbcglobal.net (John Slattebo) Tel. (760) 945-3958 Fax. (760) 945-3958
Bloomfield Innovation - Multihull Yacht Design
Design and supply of catamaran plans for sailing and power catamaran yachts is Bloomfield Innovation's area of expertise. We have extensive experience in the development of composite and aluminium catamarans, including sailing and power catamaran yachts, commercial ferry catamarans and workboats. Bloomfield Innovation supply naval architect and engineering design services for composite and aluminium catamarans from 6m (20') up to 60m (200'). Our range includes trawler catamarans, power catamaran yachts and racing and cruising sailing catamaran designs. All designs may be constructed to survey or classification society rules using aluminium or composite (fibreglass, carbon fibre,…) materials. We are exclusive agents for sales of Crowther Multihulls range of sailing design catamaran plans covering racing and cruising designs up to 60' and have access to the entire Crowther Multihulls intellectual property base on multihull sailing design. We have close relationships with a number of multihull boat builder companies around the world or we can provide design plans and support service to your choice of boat builder.
About Us|Services|Designs|News|Links|Contact Us|Site Map
Bloomfield
Innovation Pty Ltd., PO Box 349, St Kilda, Victoria
3182, AUSTRALIA
Different 22 -- A tacking outrigger
Ahoy-Boats multihull sailing dinghies and dayboats
CATRI
is a new brand but from a well established stable with a
great history
of record breaking multihulls. Of course high speed
requires that the boat should have low drag and this is
achieved with the narrow hulls of the trimaran and the
lift of the hydrofoils.
A major concern in multihull sailing is the possibility of a nosedive/pitchpole in challenging wind/wave conditions. Prevention of this must be a major consideration in the development of a new design.
In the CATRI lengthwise stability has been maximised by designing the centre of mass as far aft as possible, with a large main hull stern volume and the rear foils supporting this, full length floats, and a major contribution to stability from the forward hydrofoils. In a wind gust or wave conditions which may bury the bows of another design, the CATRI will lift the rear of the float and rear foil from the water, thus stopping lift from the rear foil, and allowing the aft distributed centre of mass to act maximally in preventing nosediving or a pitchpole (see diagram below). The forward foil, as well as the bouyancy of the forward part of the float continue to provide substantial lift, resulting in considerably more fore-aft stability than that of a traditional trimaran design. This is further enhanced by the wave-piercing design of the float. The hydrofoil system adds an extra margin of safety compared to the conventional trimaran.
The
large beam enhances stability, as does the dynamic lift
provided by the foil system. When underway, the foil
system lifts most of the float clear of the water (so
that the bottom of the float skims the water surface,
minimising drag), leaving considerable reserve bouyancy.
Beachcats International Magazine
Catapult | Challenger III | Dart 15 | Dart 16 & Vortex | Dart 18 | Dart Hawk | Hobie 15 | Hobie 16 Hobie Fox | Hurricane 5.9 | Hurricane 6.5 | KL 15.5 | KL17 | KL18 | Marlin | NACRA Inter 17 NACRA Inter 18 | Prindle 15 | Prindle 16 | Shearwater III | Spitfire | Stealth | Topcat 15 | Topcat 18 | Vortex & Dart 16 What do you think - e-mail us
At Gato Verde we provide clients of all ages and abilities with a fun and unique outdoor sailing adventure. Customized sailing lessons or carefree skippered sailing charters can run from 1.5 hours to seven days aboard our comfortable and efficient 42 foot long catamaran. Either charter option will provide our clients of all ages & abilities with a memorable outdoor adventure.
Gato Verde is based in Bellingham, Washington at the Bellingham Cruise Terminal in Historic Fairhaven, the southern terminus of the Alaska Ferry. Bellingham is located just 90 minutes North of Seattle and 60 minutes South of Vancouver, BC. Consider a sunset cruise or hosting an event out on beautiful Bellingham Bay in the shadow of Mount Baker.
360-220-3215 email us site map
Building a Modern Composite Catamaran
Building a catamaran for most people is converting a dream into reality. However it can very easily turn into a nightmare. It requires a major commitment of time, money and family life. I began building a Schionning Waterline 1160 on December 16th in 1997 and launched it 2 years later. I documented and photographed the building process in detail and then produced a CD-ROM which will hopefully give you an idea of what building a modern catamaran entails. If you decide to build a catamaran it will give you a "step by step" guide, or at the least heaps of ideas to save you money and time.
Bruce Hodgens - P.O. Box 6022, Townsville, Qld, 4810. Australia.
KHSD is a Custom and Commercial Design Service for Multihulls in Power and Sail - Creating Catamarans, Trimarans, and Proas at the Cutting Edge of Sailing Technology

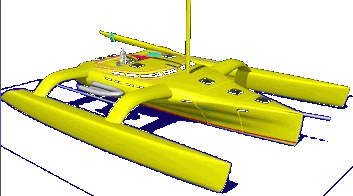

Kurt Hughes 71' flared hull trimaran design
I have the most up-to-date, uncompromising catamarans and trimaran designs available today. To begin planning your custom watership, please go to Custom Designs. (Very slow to load website)
Kurt Hughes Sailing Designs
A multihull boatbuilders in sarasota, FL
I first got into multihulls as a child growing up in Zamboanga, Phillippines, where we sailed and skindived off of double outrigger sailing canoes (vintas) built of mahogany, rattan, and bamboo. An fisherman named Tajani built a special "racing" version in our front yard one season, with a lightweight tarred rattan hull upper section. the sails looked something like this. Unfortunately, just like an immaculately finished dingy i built some years later, it proved too attractive to a thieverish eye and disappeared off the beach shortly after launching, never to return. (i built another bolger dinghy just like it, and had my six year old daughter go after it with a spray can and instructions to paint our phone number large. Later on i built another bolger boat, an AS39 named Wizard)
Several (quite a few) years later i started sailing hobie cats, wearing out several, and while getting a degree in computer science at new college, ran the (very small) sailing program there for a while, and somehow managed to build a 7-meter Wharram cat for myself in my spare time. That led to a number of projects including the aforementioned bolger, cabins for a 40' cat, a full refinish on a 1926 S-boat, and a general gutting and refit of a Lagoon 47 for circumnavigation. An affinity for wood has led me to an appreciation especially of Kurt Hughes and Chris White's multihull designs. However, building in structural foam is getting easier and cheaper, and we will be using more of it.
Catamaran
Construction

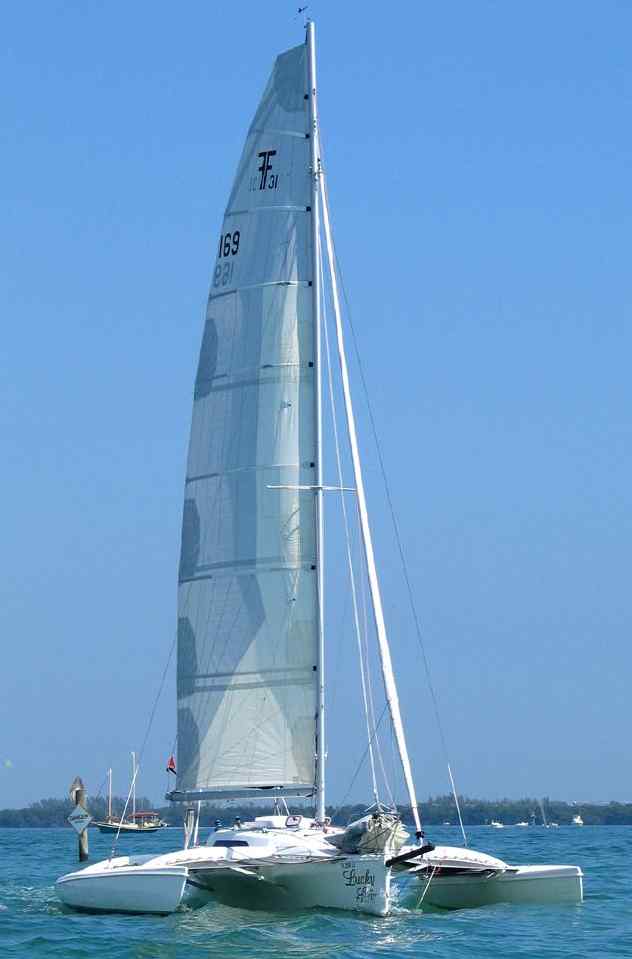

Trimaran design by Hank Brooks F31
