LYNCH DISC ARMATURE MOTOR RANGE

BUY YOUR LYNCH MOTOR ONLINE - CLICK ON THE PICTURE TO ORDER BY CREDIT CARD AND PRICE DETAILS

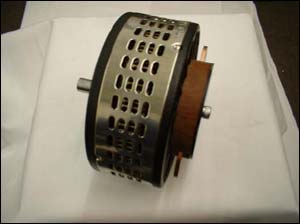

LEM 130 - Overview

The LMC 130 is an Axial Gap D.C brushed motor suitable for light traction and robotics applications. Light traction applications, winches, disabled vehicles and many more. The LMC 130 is available in 95 strip armature.

Features

• High Efficiency (up to 88%)

• Light Weight (3 kilo’s)

• Simple Electronic control

• Long Brush Life

• Interchangeable Shaft

• Rugged Construction

• CE Marked

• IP20 Rating

• Available from 12 to 48V

• Voltage Constant of 150 rpm per volt

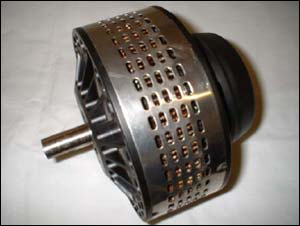

LEM - 170 - Overview

The LMC 170 is an Axial Gap D.C brush motor suitable for traction and industrial applications including, compressors, sweepers, mopeds, golf carts and pumps. The LMC 170 is available in 126 and 127 strip armatures with either single or double magnets.

Features

• High Efficiency (up to 90%)

• Light Weight (8.5 kilo’s)

• Simple Electronic control

• Long Brush Life

• Interchangeable Shaft

• Rugged Construction

• CE Marked

• IP20 Rating

• Available from 12 to 48V

• Speed proportional to voltage

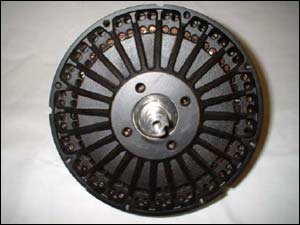

LEM 200 - Overview

The LMC 200 is an Axial Gap D.C brush motor suitable for traction and industrial applications including, Grass cutters, Go-karts, motor cycles, golf carts, Scissor lifts and Generators.
The LMC 200 is available in 126, 127 and 135 strip armatures with either single or double magnets.

Features

• High Efficiency (up to 91%)]

• Light Weight (11 kilo’s)

• Simple Electronic control

• Long Brush Life

• Interchangeable Shaft

• Rugged Construction

• CE Marked

• IP20 Rating

• Available from 12 to 84V

• Speed proportional to voltage

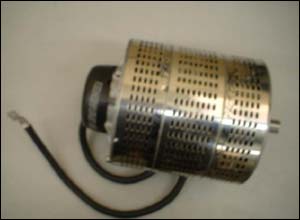

LEM 2x2 - Overview

The LMC 2X2 is a twin Axial Gap D.C brush motor suitable for heavy traction and industrial applications including, Hybrid Vehicles, Generators and pumps.
The LMC 2X2 is available in 126 and 127 strip armatures.

Features

• High Efficiency (up to 92%)

• Weight (21 kilo’s)

• Simple Electronic control

• Long Brush Life

• Interchangeable Shaft

• Rugged Construction

• CE Marked

• IP20 Rating

• Available from 60 to 120V

• Speed proportional to voltage, 60 rpm per Volt
