INTRODUCTION



Most of the cities in developing countries are highly polluted. The main reasons are the air and noise pollution caused by transport vehicles, especially petrol-powered two and three wheelers. For example, in India there are close to 18 million petrol powered two wheelers and about 1.5 million petrol and diesel powered three wheelers and their population is growing at a healthy rate of about 15% per annum.



Besides being a major hazard to people’s health, these machines are guzzling huge amounts of petrol and diesel for which any country has to pay dearly in foreign exchange outflow. In fact it is a common sight in developing countries as much as in the City of London, Paris, Rome or Los Angeles, that during traffic jams in congested areas these vehicles produce tremendous pollution.

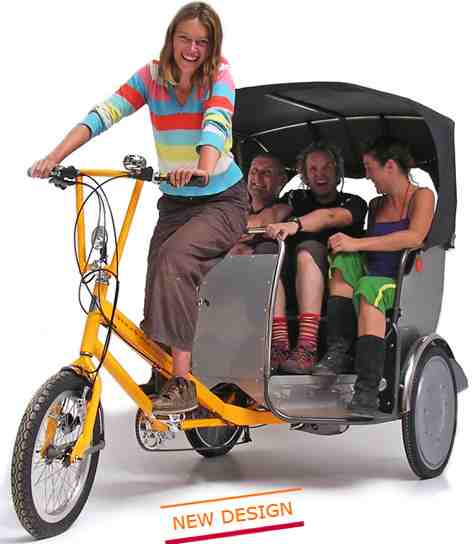

Maximus Pedicab £3145 + VAT & delivery







PEDICAB



















• Extremely reliable
• Highly manoeuverable
• Comfortable easy ride

• Simple to maintain
• Very economical to run
• Zero pollution

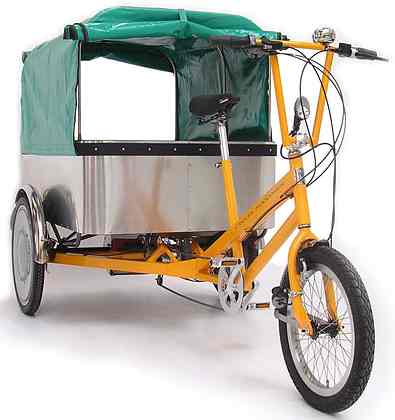

ELECTRIC and SOLAR POWERED RICKSHAWS



An electric cycle rickshaw can provide a non-polluting and a very silent transport system for urban and rural areas and busy cities.  The low rolling resistance and light weight make this vehicle very energy efficient and cost effective.  Work done at major research Institutions has shown that improved cycle rickshaws powered by electric motors and batteries have a potential to provide an attractive alternative to petrol and diesel powered three wheelers.







Solar Rickshaw £ P.O.A.





Besides they can also provide large scale employment and extra income to the rickshaw operator, without affecting his or her health.  The Maximus electric Trike featured on this page in three different guises, may be converted to solar power to take advantage of free energy from nature.  We would be happy to arrange for bespoke orders to suit your requirements.  Such as to include suitably integrated and stylish cab bodies.







• Carries 3 adult passengers in comfort

• Safety belts

• Opportunity for large income from advertising.  Now with extra advertising space

• Easily interchangeable with cargo box

• Optional rain and cold screen

• Lockable box under the seat for storage of the riders belongings

• Fold flat roof , so trike can be  stored on its back using less floor space

• Improved appearance







EXISTING CYCLE RICKSHAWS



There are guesstimates that close to 1 million cycle rickshaws ply the Indian roads carrying about 3-4 billion passenger-km/year . In some cities they are the major means of transport. They provide employment to about 700,000 rickshaw pullers, are very maneuverable and are completely non-polluting and hence environmentally friendly means of transport. It is very unfortunate that deliberate policies in most of the urban towns of developing countries have been made by the concerned authorities to phase out these rickshaws. These non-polluting vehicles are being replaced by polluting (both air and noisewise) petrol and diesel powered three wheelers. Our data show that three wheeler diesel tempos in Lucknow city (capital of Uttar Pradesh) produce close to 70-80 decibel noise at a distance of 1-2 m, besides belching out huge amounts of particulates into the air .



Nevertheless the existing rickshaws are very poorly designed so that it takes a heavy toll on the health of a rickshaw puller. The existing cycle rickshaw has hardly changed since it was introduced in 1930’s and 40’s in India. The gearing and the mechanical advantage of the pedal is very poor. Hence the rickshaw puller has to work very hard while climbing even a slight slope. A common sight is of rickshaw puller getting down and pulling on foot the rickshaw with passengers. The braking system is also very poor with only front brakes on the rickshaw. Thus when going downhill at high speeds sudden braking produces a catapult effect. Similarly the seating arrangement is very uncomfortable and the aerodynamic drag of the system is very high.



It is therefore humanly degrading to pull the existing inefficient cycle rickshaw. Yet because of poverty, laborers do become rickshaw pullers and suffer adverse consequences to their health. The rickshaw manufacturing presently is a footpath industry with no quality control and there are as many rickshaw designs as cities in which they ply. These rickshaws are so poorly made that they have to be replaced completely in a couple of years. Thus there is a need to improve the existing rickshaw and bring quality control in its manufacture.

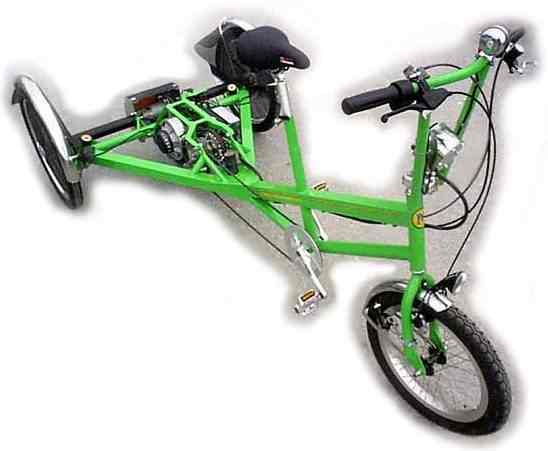

Maximus bare frame £2345 + 17% VAT & delivery (Lynch motor option extra)







BARE FRAME OPTION











All Maximus trike features:



Frame:   Steel plus T45 Aircraft grade in parts with high strength requirements.

Forks:
  Curtis Pro BMX Standard.

Wheels:   Front 20 x 1.75. Rear 23 x 2.00.



Tyres: Front 20 x 2.25 / 2.50. Rear 23 x 2.00 / 2.50 moped strength.



Size: Length 2.3 M. Width - 1.2 M.



Weight: Chassis 46 Kg. Pedicab Rickshaw body 29 Kg including hood.


Cargo Trike body complete 32 Kg.



Load Capacity: 250 kg



Headset:  1 1/8" Steel BMX Aheadset.



Stem BMX 4 Bolt Clamp.



Handlebars:  Maximus Design.



Seat All leg lengths fit standard model. Seatpost 400mm long. Sprung Seat.



Bottom Bracket:  Quality cartridge style.



Pedals Platform BMX Type, 9/16"






Chainset Single 48 T



Transmission Sram 3 x 8 gearhub system. 8 speed derailleur driving 3 speed hub - this allows gearchange in all conditions. Chain driven differential driving 20 mm Hollow Rear Axle.



Mudguards Stainless Steel



Brakes Front Magura Hydraulic Rim Brakes with parking brake. Rear Hope
Hydraulic Disc Brakes with 185mm Diameter Discs.



Body Pedicab Rickshaw - people carrier with optional rain guard.
Cargo Trike - box with tailgate and optional hood.





Lynch Motor - Option 2 £2395 + VAT





ADD LYNCH MOTORS





Optional - Electric motor assistance: - 24 volt Heinzmann hub motor 200 watt - 12 volt Lynch motor with chain-driven double free-wheel transmission 250 watts.





Heinzman Hub Motor - Option 1 £995 + VAT







ADD HUB MOTORS









Colours -  Standard colour is Yellow with Other colours to order at extra charge, and please see chart below.



Delivery - Anywhere in the UK £110.00 - Overseas quoted on application.







WE CAN ARRANGE SECURE ONLINE PAYMENTS



PLEASE CONTACT US FOR DETAILS







Red
Orange
Yellow
Green
Blue
Purple
Pink
White
Grey
Black
Silver
3020
2003
1028
6018
5015
4008
4003
= RAL Number
186
1585
116
362
285
512
219
= Approx. PANTONE Colours (a guide only)







RICKSHAWS DEFINED



Rickshaws (or rickshas) are a mode of human-powered transport: a runner draws a two-wheeled cart which seats one or two persons. Rickshaws were mainly used in Asia, but nowadays they are outlawed in many places and have been replaced by cycle rickshaws and auto rickshaws (and the term "rickshaw" is today commonly used for these vehicles as well). The last sizeable fleet of true rickshaws can be found in Kolkata (Calcutta), where the rickshaw driver union resisted prohibition.

It is a tourists' attraction at Star Ferry pier on at Edinburgh Place, on Hong Kong Island, Hong Kong.



Rickshaws were invented in Japan at the end of the 19th century by a European missionary named Jonathan Scobie, to transport his invalid wife through the streets of Yokohama. The name derives from the Japanese expression jinrikisha (人力車) which means literally 'human-powered vehicle'. The first rickshaw appeared in India around 1880 on the avenues of Simla. Some 20 years later a few of these vehicles arrived in Calcutta, imported by Chinese traders who used them to transport goods.



In 1914 the same Chinese people applied for permission to use them to carry people and it was not long before rickshaws were to be found in many metropolises all over Southeast Asia.  For peasants migrating to the big cities the rickshaw offered a means of earning a living. No one knows exactly how many there are today in the streets of Kolkata. Unofficial statistics suggest 50,000, providing employment for twice as many pullers. Economists have calculated that the economic value of rickshaws and their pulling is $6 million - a quarter of the budget of the whole urban transport system of a city like Paris.  Accordingly, it makes economic and environmental sense to phase in solar powered Rickshaws to keep the advantages of the basic concept, but improve the service for both operator and passenger.

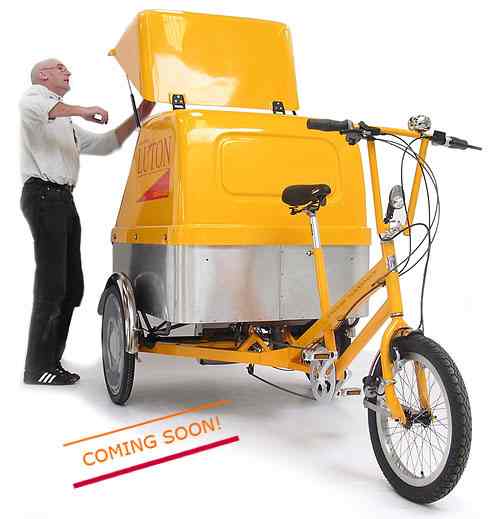

Maximus Cargo Trike £2795 + 17.5% VAT & delivery







CARGO TRIKE













High payload, easy access and flexible weather-proof covering make the Cargo Trike the ideal choice for urban delivery and carriage applications. Bikes are often as fast as vans in town centres, and with freedom from parking restrictions, fossil fuels and road tax, the Maximus Cargo Trike is a clear winner.  This is an incredibly economical way of moving goods in a city centre.





• Weatherproof hood with zip fastening

• Internal capacity: 123 cm long x 90 cm wide x 94 cm high

• Opportunity for large income from extra advertising.

• Easily interchangeable with pedicab seat

• Can easily be stored on its back to save space

• Loads up to 250 kg

• Roof that folds flat, so that the trike can be stored on its

   back, taking up less floor space

• Aluminium sides and drop tailgate

• Improved appearance





RICKSHAW HISTORY



Dhaka, capital of Bangladesh, has become known as the city of Rickshaws. I n fact the main transport of this populous city is cycle Rickshaw. Almost 12 million people live in this city. Rickshaws are growing in number because they are inexpensive and they provide an income for more than quarter million people.  Rickshaws in Dhaka are constructed with bi-cycle spare parts, rugs, bamboo sticks and plastic sheets.  They are decorated with traditional paintings. The rickshaws with their ornate decorations and imaginative hand paintings have a special place in Dhaka city’s transport.



In addition to Dhaka, the Rickshaw is one of the principal means of transport in the urban areas of Bangladesh. With the improvement of road communication throughout the country, the rickshaw has now found its way into rural areas as well. As a mode of transport the rickshaw was first introduced in Japan in the early twentieth century. This mode of transport became particularly popular there due to the Second World War situation, which made petrol and motorised transport scarce and expensive. Japan, however, had soon replaced rickshaws, nintaku in Japanese, with motorised vehicles and by the 1950s the cycle rickshaw had disappeared from Japan.



In the 1930s and early '40s rickshaws became popular in Indonesia, Singapore and other Southeast Asian countries. The rickshaw is said to have reached Chittagong from Myanmar in 1919. Interestingly, rickshaws did not spread out to Dhaka and other cities of Bangladesh from Chittagong. Dhaka got its rickshaws from Calcutta, where it was first introduced around 1930. European jute exporters living in Narayanganj and Netrokona (in Mymensingh) had first imported cycle rickshaw from Calcutta in 1938 for their personal use. The new vehicle roused great curiosity among the people of Dhaka, who were traditionally used to horse carriages, palanquins and city-canal boats. Initially cycle rickshaw did not receive enthusiastic response from users.







Coming soon





• Hand-built, rugged construction

  • Differential drive

• High specification components

  • Lightweight aircraft-grade steel

• Hydraulic brakes

  • Choice of interchangeable bodies

• 24 speed transmission

  • Electric motor options





The Dhaka city had only 37 rickshaws in 1941 and 181 rickshaws in 1947. Before 1947, Dhaka was a district town, which had a population of 62,469 only according to 1951 census. But in 1998, the city's population grew over 8 million and the number of registered rickshaws in the city was 112,572. The number of rickshaws in all other cities of Bangladesh in that year was 274,265 and in all villages 91,040. Rickshaw and rickshaw vans (also a tricycle vehicle similar to rickshaw but with the difference that instead of passenger seats, these have a flat bed of wooden bars resting on the axle over the rear pair of wheels and they carry goods in small lots) are now fast replacing the traditional transports like horse carriages and bullock carts in the country.



It is a popular guess that the total number of rickshaws in the city is at least two and a half times that of the registered ones and accordingly, the city had at least 280,000 rickshaws in 2000. Estimates based on the figures that each rickshaw is operated by two pullers in morning and evening shifts and the average number of family members of a rickshaw puller is five, suggest that the rickshaws of Dhaka city alone is a source of income for nearly three million people.



Unlike in all Southeast Asian countries, rickshaws in Bangladesh have a lasting foothold. It has established itself with a dominance unmatched by other modes of transport. The predominance of rickshaw as a transport is evidenced by the fact that the percentage-wise traffic composition in Dhaka, Sylhet, Comilla and Rangpur cities are 49%, 78%, 80% and 55% respectively. Other means of transport in Dhaka are, in order of traffic, the (a) cars, jeeps, pick-ups etc. (b) baby taxi, (c) bus, (d) truck, (e) tempo and (f) bicycle. Bicycle, however, is the second in the list of predominant vehicles in cities outside Dhaka.



Fifty percent of the value added in transport sector is being contributed by rickshaws and the mode of transport provides employment and living to people engaged not only as the pullers directly but also as its manufacturers of its mainframe, the body with seat and hoods and its spare parts. A great number of people depends for the living on the decoration of rickshaw body, artwork on it and rickshaw garages. [Sirajul Islam]





Kolkata rickshaw, 2004



Kolkata rickshaw, 2004





RICKSHAWS ART



The decorations of rickshaws is rickshaw art, which can vary from painted backboards and rear side panels to cut-outs appliqued onto hoods and brass vases replete with plastic or paper flowers. In a restrictive sense it is generally applied to the painted backboard, a tin plate fixed to the lower rear of a rickshaw hiding the chain. In this sense it is also extended to include the paintings on the rear of auto rickshaws or baby taxis. Rickshaw art has been compared to traffic art in other parts of the world, such as the decorated trucks of Pakistan.



Rickshaw art is mainly an urban phenomenon and perhaps dates back to the 1950's. It shares some similarity of theme and execution with movie billboards, which may be ascribed to the fact that many rickshaw painters had either themselves painted movie billboards or had apprenticed with such painters. The art of the rickshaw painter is passed on from ustad, master, to apprentice. There is a lot of repetition, either because of the popularity of some motifs or because of the influence of the master craftsman. The paintings are executed quickly, with readymade enamel paints, which do not allow paints to be mixed. Bright primary colours are popular and the painting is flat, lacking shadows, perspective, and scale.



There are variations in rickshaw art in different towns of Bangladesh. For example, nearly eighty per cent of rickshaws in Dhaka city are decorated and most of them have animal scenes, natural scenes, and pictures of movie themes. Chittagong and Comilla areas show less enthusiasm about decorating rickshaws and the rickshaw art there contain fewer human images and have more images of flowers, birds, animals etc. Rickshaws in Sylhet, considered to be a more pious area, are rarely decorated.





Japanese rickshaws c.1897



Japanese rickshaws c.1897





Among popular themes are the Taj Mahal, movie scenes and portraits of movie stars, idyllic scenes of rural Bengal with plump hens, placid cows, coconut palms, neat huts, gentle streams. Islamic scenes such as mosques and Borak, the winged horse, are also frequently found. Because rickshaw backboards have to be painted annually, rickshaw artists often depict topical themes. In the early seventies, scenes of fighting between muktijoddha (freedom fighters) and Pakistani soldiers were common. Increasingly common, especially on autorickshaws are scenes of futuristic cities, planes and other fast-moving forms of transport.
