HMS Victory is a 104 gun ship of the line of the Royal Navy, built in the 1760s. She is the oldest ship still in commission in the world and sits in dry dock in Portsmouth as a museum ship.



Construction



In December 1758, the commissioner of Chatham dockyard was instructed to prepare a dry dock for the construction of a new 100-gun first rate ship. This was an unusual occurrence at the time; during the whole of the eighteenth century only ten were constructed - the Royal Navy preferred smaller and more manoeuvrable ships and it was unusual for more than two to be in commission simultaneously.



The outline plans arrived in June 1760 and were based on HMS Royal George which had been launched at Woolwich in 1756.









The Battle of Trafalgar by J. M. W. Turner (oil on canvas, 1822–1824)





The keel was laid on 23 July 1759 in the Old Single Dock (now No. 2 Dock), and the name was finally chosen in October 1760. It was to commemorate the Annus Mirabilis or Year of Victories, of 1759. In that year land victories had been won at Quebec, Minden and naval battles had been won at Lagos and Quiberon Bay. There were some doubts as whether this was a suitable name since the previous first rate Victory had been lost with all on board in 1744.



Once the frame had been constructed it was normal to cover the ship up and leave it for several months to season. However, the end of the Seven Years' War meant that she remained in this condition for nearly three years, which helped her subsequent longevity. Work restarted in autumn 1763 and she was finally launched on 7 May 1765 having cost £63,176 and 3 shillings and used around 6000 trees, 90% of which were oak and the remainder elm, pine and fir.



There being no immediate use for her she was placed in ordinary— in reserve having been roofed over, demasted and placed under general maintenance—moored in the River Medway for 13 years until France joined the American War of Independence.

She was commissioned in 1778 under the command of Rear Admiral John Campbell (1st Captain) and Captain Jonathan Faulknor (2nd Captain), with the flag of Admiral the Honorable Augustus Keppel. She was armed with smooth bore, cast iron cannon 30 x 32 and 42 pounders (15 and 19 kg), 30 x 24 pounders (11 kg), and 40 x 12 pounders (5 kg). Later she also carried two carronades, firing 68 lb (31 kg) round shot.











In service



Keppel put to sea from Spithead on July 9, 1778, with a force of 30 ships of the line and, on July 23rd, sighted a French fleet of 29 sail 100 miles (160 km) west of Ushant. The French Admiral, the Comte d'Orvilliers, who had orders to avoid battle, was cut off from Brest but retained the weather gage. Two of his ships to windward escaped into port leaving him with 27. The two fleets manoeuvred during shifting winds and a heavy rain squall until a battle became inevitable with the British more or less in column and the French in some confusion. However, the French managed to pass along the British line to windward with their most advanced ships. At about a quarter to twelve Victory opened fire on Bretagne 110, followed by Ville de Paris 90.



The British van escaped with little loss but Sir Hugh Palliser's rear division suffered considerably. Keppel made the signal to wear and follow the French but Palliser did not conform and the action was not resumed. Keppel was court martialled and cleared and Palliser criticised by an inquiry before the affair turned into a party political squabble.



In March 1780 the hull below the waterline was sheathed with 3,923 sheets of copper to protect it against shipworm.



On December 2, 1781, Victory, now commanded by Captain Henry Cromwell and bearing the flag of Rear Admiral Richard Kempenfelt, sailed with 11 other ships of the line, a 50 and five frigates, to intercept a convoy which sailed from Brest on December 10. Ignorant of the fact that the French Comte de Guichen had twenty one ships of the line, Kempenfelt ordered a chase when they were sighted on December 12 and began the Second Battle of Ushant. When he noted the French superiority he contented himself with capturing 15 sail of the convoy. The French were dispersed in a gale and forced to return home.



In 1796 Captain Robert Calder (First Captain) and Captain George Grey (Second Captain) commanded Victory under Admiral Sir John Jervis's flag. Sir John Jervis sailed from the Tagus on January 18, 1797, and after being reinforced on February 6 by five ships from England, his fleet consisted of 15 sail of the line and six frigates. On February 14, the Portuguese frigate Carlotta, commanded by a Scotsman named Campbell with a Portuguese commission, brought news that a Spanish fleet was close. Jervis manoeuvred to intercept, and the Battle of Cape St Vincent was joined. Principe de Asturias, leading the Spanish lee division, tried to break through the British line ahead or astern of Victory but that ship poured such a tremendous fire into her, followed by several raking broadsides, that the whole Spanish division wore round and bore up. Horatio Nelson, in HMS Captain (primarily), also played a decisive role in this action.





Career

RN Ensign

Ordered:



Laid down:

23 July 1759

Launched:

7 May 1765

Commissioned:

1778

Decommissioned:

Fate:

Active, preserved

General Characteristics

Displacement:

3,500 tons (3,556 tonnes)

Length:

186 ft (56.7 m) gundeck, 227 ft 6 in (69.3 m) overall

Beam:

51 ft 10 in (15.8 m)

Draught:

28 ft 9 in (8.8 m)

Height from waterline to top of mainmast:

205 ft (62.5 m)

Propulsion:

Sails—6,510 yd² (5,440 m²)

Speed:

8 to 9 knots (15 to 17 km/h) maximum

Range:

Limited by water and provisions

Complement:

Around 850

Armour:

None, although oak hull thickness at waterline 2 ft (0.6 m)

Armament (Trafalgar):

Forecastle: 2 x medium 12 pounder (5 kg), 2 x 68 pounder (31 kg) carronade

Quarter deck: 12 x 1.7 ton short 12 pounder (5 kg)
Upper gundeck: 30 x 1.7 ton short 12 pounders (5 kg)
Middle gundeck: 28 x 2.5 ton long 24 pounders (11 kg)
Lower gundeck: 30 x 2.75 ton long pattern Blomefield 32 pounders (15 kg)
Marines armed with muskets aloft





Reconstruction



In February 1798, Victory was stationed at Chatham under the command of Lieutenant J. Rickman. On 8 December, unfit for service as a warship, she was ordered to be converted to a hospital ship to hold wounded French and Spanish prisoners of war. In 1799, Rickman was relieved by Lieutenant J. Busbridge.



However on 8 October 1799 HMS Impregnable was lost off Chichester, having run aground on her way back to Portsmouth after escorting a convoy to Lisbon. She could not be refloated and so was stripped and dismantled. Consequently, now short of a first rate, the Admiralty decided to recondition Victory. Work started in 1800 but as it proceeded an increasing number of defects were found and the repairs developed into a very extensive reconstruction. The original estimate was £23,500 but the final cost was £70,933.



Extra gun ports were added, taking her from 100 guns to 104, and her magazine lined with copper. Her figurehead was replaced along with her masts and the paint scheme changed from red to the black and yellow seen today. Her gun ports were originally yellow to match the hull but later repainted black, giving a pattern later called the "Nelson chequer" and which was subsequently adopted by all Royal Navy ships after the Battle of Trafalgar. The work was completed on 11 April 1803 and the ship left for Portsmouth on 14 May under her new captain, Samuel Sutton.





Nelson



Lord Nelson hoisted his flag in Victory on 16 May 1803 with Samuel Sutton as his flag captain and sailed to assume command in the Mediterranean on May 20. Nelson transferred to the faster frigate Amphion on 23 May.



On May 28th Captain Sutton captured the French Embuscade 32, bound for Rochefort from San Domingo. Victory rejoined Lord Nelson off Toulon on July 30 when Captain Sutton exchanged commands with the captain of the Amphion Thomas Masterman Hardy.



Victory was passing the island of Toro on April 4, 1805, when HMS Phoebe brought the news that the French fleet under Pierre-Charles Villeneuve had escaped from Toulon. While Nelson made for Sicily to see if the French were heading for Egypt, Villeneuve was entering Cádiz to link up with the Spanish fleet. On 7 May Nelson reached Gibraltar and received his first definite news. The British fleet completed their stores in Lagos Bay, Portugal, on May 10 and two days later sailed westward with ten ships and three frigates in pursuit of the combined Franco-Spanish fleet of 17 ships. They arrived in the West Indies to find that the enemy was sailing back to Europe where Napoleon Bonaparte was waiting for them with his invasion forces at Boulogne.



The combined fleet were involved in an indecisive action in fog off Ferrol with Admiral Sir Robert Calder's squadron on 22 July before taking refuge in Vigo and Ferrol to land wounded and abandon three damaged ships. Calder on 14 August and Nelson on 15 August joined Admiral Cornwallis's Channel Fleet off Ushant. Nelson continued to England in Victory leaving his Mediterranean fleet with Cornwallis who detached 20 of his 33 ships of the line and sent them under Calder to find the combined fleet at Ferrol. On 19 August came the worrying news that the enemy had sailed from there, followed by relief when they arrived in Cádiz two days later. On the evening of Saturday, 28 September, Lord Nelson joined Lord Collingwood's fleet off Cádiz, quietly, so that his presence would not be known.



When Admiral Villeneuve learned that he was to be removed from command he took his ships to sea on the morning of October 19, first sailing south towards the Mediterranean but then turning north towards the British fleet, beginning the Battle of Trafalgar. Nelson had already made his plans: to break the enemy line some two or three ships ahead of their Commander in Chief in the centre and achieve victory before the van could come to their aid. In the event fitful winds made it a slow business. For five hours after Nelson's last manoeuvring signal the two columns of British ships slowly approached the French line before Royal Sovereign, leading the lee column, was able to open fire on Fougueux. Twenty five minutes later Victory broke the line between Bucentaure and Redoutable firing a double shotted broadside into the stern of the former from a range of a few yards. At 25 minutes past one Nelson was shot, the fatal ball entering his left shoulder and lodging in his spine. He died at half past four. Such killing had taken place on Victory's quarter deck that Redoutable attempted to board her, but the marines and small arms men repelled them. Nelson's last order was for the fleet to anchor but this was rejected by Vice Admiral Collingwood. Victory lost 57 killed and 102 wounded.

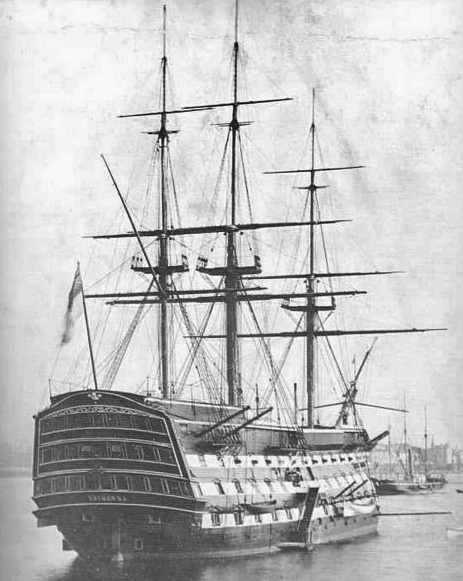

HMS Victory in dock 1884



HMS Victory in 1884





After Trafalgar



Victory took Nelson's body to England where, after lying in state at Greenwich, the burial took place in St. Paul's Cathedral on January 6, 1806.



Victory bore many Admiral's flags after Trafalgar, and sailed on numerous expeditions, including two Baltic campaigns under Admiral Sir James Saumarez. Her active career ended on November 7, 1812, when she was moored in Portsmouth Harbour off Gosport and used as a depot ship.



Over the next century, Victory slowly deteriorated at her moorings. A campaign to save her was started in 1921 with the Save the Victory Fund under the aegis of the Society for Nautical Research, by which time she was in very poor condition. The outcome of the campaign was that British Government agreed to restore and preserve her to commemorate Nelson, the Battle of Trafalgar and the Royal Navy's supremacy during and after the Napoleonic period.



On 12 January 1922 she was moved into the oldest drydock in the world: No. 2 dock at Portsmouth. Restoration continued and in 1928 King George V was able to unveil a tablet celebrating the completion of the work, although it still continues under the supervision of the Society for Nautical Research. Over the last few years the ship has undergone very extensive restoration to bring her appearance to as close as possible to that which she had at Trafalgar for the bicentenary of the battle in October 2005.



HMS Victory is still in commission as the flagship of the admiral for the time being acting as Second Sea Lord in his role as Commander in Chief of the Royal Navy's Home Command (CINCNAVHOME). She is the oldest commissioned warship in the world, although the USS Constitution, launched 30 years later, is the oldest commissioned warship still afloat. Victory attracts around 350,000 visitors per year in her role as a museum ship.

The name is also used to refer to the Royal Naval Barracks at Portsmouth.




Admirals who have hoisted flags in Victory





Admiral The Hon. Augustus Keppel

May 16, 1778

October 28, 1778

Admiral Sir Charles Hardy

March 19, 1779

May 14, 1780

Admiral Geary

May 24, 1780

August 28, 1780

Rear Admiral Francis Drake

September 26, 1780

December 29, 1780

Vice Admiral Sir Hyde Parker

March 20, 1781

May 31, 1781

Commodore John Elliot

June 1781

August 1781

Rear Admiral Richard Kempenfelt

September 10, 1781

March 11, 1782

Admiral The Earl Howe

April 20, 1782

November 14, 1782

Admiral The Earl Howe

July 1790

August 1790

Admiral The Lord Hood

August 1790

August 1791

Rear Admiral Sir Hyde Parker

February 6, 1793

May 1793

Admiral The Lord Hood

May 6, 1793

December 15, 1794

Rear Admiral John Man

July 8, 1795

September 27, 1795

Vice Admiral Robert Linzee

October 1795

November 1795

Admiral Sir John Jervis

December 3, 1795

March 30, 1797

Vice Admiral The Viscount Nelson

May 8, 1803

October 21, 1805

Admiral Sir James Saumarez

March 18, 1808

December 9, 1808

Admiral Sir Graham Moore

December 1808

January 23, 1809

Admiral Sir James Saumarez

April 8, 1809

December 1809

Admiral Sir James Saumarez

March 11, 1810

December 3, 1810

Rear Admiral Sir Joseph Yorke

December 1810

March 1811

Admiral Sir James Saumarez

April 2, 1811

December 25, 1811,

Admiral Sir James Saumarez

April 14, 1812

October 15, 1812

In Ordinary

December 18, 1812

January 31, 1824

Commissioner Sir Michael Seymour

1824

Paid off

April 30, 1827

October 21, 1831

became Flagship of Port Admiral

Rear Admiral Sir F L Maitland

1832

Rear Admiral D Pleydell Bouverie

1837

Rear Admiral Hyde Parker

1842

Rear Admiral W H Shiffeff

1847

Admiral Sir C. Ogle

March 20, 1848

December 19, 1848

Admiral Sir T B. Capel

December 20, 1848

December 19, 1851

Admiral Sir Thomas Briggs

December 20, 1851

March 19, 1853

Vice Admiral Sir Thomas J. Cochrane

March 20, 1854

March 19, 1856

Vice Admiral Sir George F. Seymour

March 20, 1856

March 19, 1859

Admiral William Bowles

March 20, 1859

March 19, 1860

Vice Admiral Henry Bruce

March 20, 1860

December 19, 1864

Vice Admiral Sir Michael Seymour

December 20, 1864

March 19, 1866

Vice Admiral Sir Thomas Pasley

March 20, 1866

March 20, 1869

Tender to HMS Duke of Wellington

December 20, 1869

September 1, 1891

Admiral The Earl of Clanwilliam

August 1, 1891

September 17, 1894

Admiral Sir Nowell Salmon VC

September 18, 1894

August 31, 1897

Admiral Sir Michael Culme-Seymour

September 1, 1897

November 17, 1900

Admiral Sir Charles F Hotham

November 18, 1900

September 30, 1903

Admiral Sir John Fisher

October 1, 1903

March 18, 1904

The Port Admiral's flag moved to Hercules

and on February 1, 1905, to Firequeen

Admiral Sir Archibald L Douglas

March 18, 1905

March 1, 1907

Admiral Sir Day H Bosanquet

March 2, 1907

March 17, 1908

Admiral Sir Arthur D. Fanshawe

March 18, 1908

April 30, 1910

Admiral Sir Assheton Gore Gurzon-Howe

May 1, 1910

March 17, 1911

Admiral Sir Arthur W. Moore

March 18, 1911

July 31, 1912

Admiral of the Fleet Sir Hedworth Meux

August 1, 1912

February 17, 1916

Admiral The Hon Sir Stanley Colvill

February 18, 1916

April 17, 1919

Admiral Sir Cecil Burney

April 18, 1919

June 17, 1920

Admiral Hon Sir Arthur Gough-Calthorpe

June 18, 1920

May 31, 1923

Admiral Sir Sidney Robert Fremantle

June 1, 1923

April 1, 1926

Admiral Sir Osmond de Beauvior Brock

May 18, 1926

April 30, 1929

Admiral of the Fleet Sir Roger Keyes

May 1, 1929

June 17, 1931

Admiral Sir Arthur Waistell

June 18, 1931

February 17, 1934

Admiral of the Fleet Sir John Kelly

February 18, 1931

August 31, 1936

Admiral of the Fleet The Earl of Cork and Orrery

August 18, 1937

June 30, 1939

Admiral Sir William M. James

July 1, 1939

September 30, 1942

Admiral Sir Charles Little

October 1, 1942

September 28, 1945

Admiral Sir Geoffrey Layton

September 29, 1945

June 29, 1947

Admiral The Lord Fraser of North Cape

June 30, 1947

April 18, 1949

Admiral of the Fleet Sir Algernon Willis

April 19, 1949

October 17, 1950

Admiral of the Fleet Sir Arthur J. Power

October 18, 1950

October 17, 1952

Admiral Sir John Edelsten

October 18, 1952

October 17, 1954

Admiral of the Fleet Sir George E Creasy

October 18, 1954

July 17, 1957

Admiral Sir Guy Grantham

July 18, 1957

July 17, 1959

Admiral Sir Manley L Power

July 18, 1959

January 17, 1962

Admiral Sir Alexander N C Bingley

January 18, 1962

January 17, 1963

Admiral Sir Wilfrid J. W. Woods

January 18, 1963

September 9, 1965

Admiral Sir Varyl C. Begg

September 10, 1965

June 9, 1966

Admiral Sir Frank E. Hopkins

June 10, 1966

October 30, 1967

Admiral Sir John B. Frewen

October 31, 1967

February 27, 1970

Admiral Sir Horace R. Law

February 28, 1970

February 28, 1972

Admiral Sir Andrew Lewis

February 29, 1972

June 29, 1974

Admiral Sir Derek Empson

June 30, 1974

October 30, 1975

Admiral Sir Terence Lewin

October 31, 1975

October 30, 1976

Admiral Sir David Williams

October 31, 1976

October 30, 1978

Admiral Sir Richard Clayton

October 31, 1978

June 30, 1981

Admiral Sir James Eberle

July 1, 1981

December 31, 1983

Admiral Sir Desmond Cassidi

January 1, 1983

October 30, 1984

Admiral Sir Peter Stanford

October 31, 1984

October 30, 1987

Admiral Sir John Woodward

October 31, 1987

October 30, 1989

Admiral Sir Jeremy Black

October 31, 1989

March 30, 1991

Admiral Sir John Kerr

March 31, 1991

March 30, 1993

Admiral Sir Michael Layard

March 31, 1993

March 30, 1994

Admiral Sir Michael Boyce

March 31, 1994

March 30, 1997

Admiral Sir John Brigstocke

March 31, 1997

January 18, 2000

Vice Admiral Sir Peter Spencer

January 19, 2000

January 28, 2003

Vice-Admiral Sir James Burnell-Nugent

29 January 2003

present
