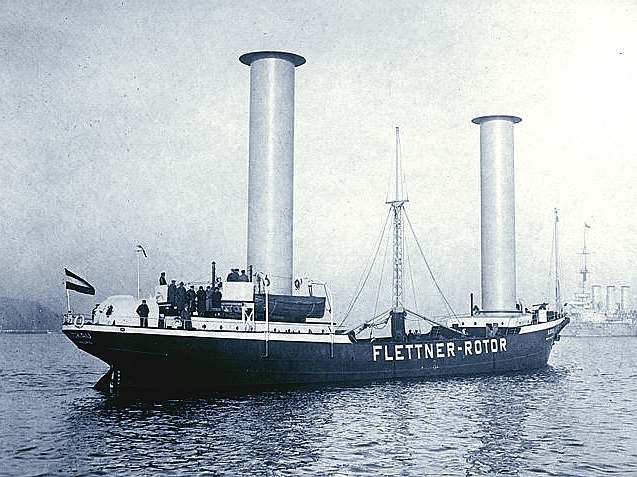

Anton Flettner's experimental rotor sailing ship



The Flettner Rotor experimental ship. Not quite a wing, but certainly an interactive surface designed to generate pull in one direction







WingSail Design/ Boat Name

Designer

Year

Wing Construction Type

Comments

Warialda Pleasure Craft

?

2001

Rigid - Composite

A solid foil with a trailing edge flap

Double skin junk sail

Robert Biegler

2000

Soft

A Double skin junk sail

The Volantis wing
/Hydro Wing - company
"EIFO" prototype trifoil

Dr. Sam Bradfield - the boat
David Hubbard - for the wingsail

2001 - website
1998 - wingsail design

wing mast, mast flap, trim flap- Rigid-composite

Prototype Phase
wing made up of following: wingmast, mast flap, main sail, trim flap
= a computerized full airfoil system
the system can be reefed

ECO-RANGER

 James H. Crafer

 2000

 Rigid-composite

 Design Phase
Hybrid Electric/Sail power
solar panels mounted on rigid wing

 ?

 Richard Lawson

 2000

 Soft

 double film sail

 PowerFoil

 Gordon Ross

1980's/
2000 production

 Soft

double sided soft sail with full battens - currently for windsurfer

Windrocket

Ken Fry

1999-

Rigid – composite

 Prototype constructed and currently being tested March 2001

A-Wing

 Tom Ross

 1999-

 Soft

 Currently only available for windsurfers.
double film sail with carbon composite RIBs which are an integral part of the sail surface.

Atlantis

Gabriel Elkaim

1998-

Rigid – composite

Design phase
computer controlled

Dynawing/
DynaRig

Rob Hobbs /
Patrick & Greg Johnston

1998- /
1985-

Soft

 Prototype phase

Tom's SpeedSail/
Aeroskimmer



1997?-



 Built and sailed

Cogito

 Duncan MacLane & Steve Clark

 1996

 Rigid - composite

 Built and Sailed
C-Class cat

Extreme 50

 Lindsay Cunningham

 1994?-

 Rigid – composite

 Built and sailed

DoyleWing

A norwegian in partnership with DoyleSail, Norway

1994?

Soft

Prototype built but never got to market

Yellow Pages Endeavor

 Lindsay Cunningham

 1993-

Rigid – composite

 Built and sailed

Aero-Hydrofoil

Bob Imhoff

1992 -

Soft

Three prototypes built and sailed

The Edge III

Lindsay Cunningham

1991



 Built and sailed

Techniques Avancées





Rigid – composite

 Built and sailed

 Cornell University Rigid Airfoil RAFT



 1995-



 Built and ?

Walker WingSail/Zephyr

John G. Walker

1994?

Rigid – composite

 Built and sailed

Boatek

Bob Quinton

1994-

Rigid – composite

 Built and sailed

Miss Nylex

Chris Wilson

?

Rigid – composite

 Built and sailed

 Latham Wing/ WingSailer

 ? Latham

 1995?

 Soft wing of Dacron with rigid leading edge wing slot

 Several production units built

 Altair XII

 David Hubbard co-designed the wing

1990

 Rigid

 winner of the Bol D'Or race on Lake Geneva in Switzerland.

Stars and Stripes 88

 David Hubbard - the wing

1988-

Rigid

 Built and sailed

Seaflier

Patrick Cudmore

1971-1985

Soft

Three prototypes built and sailed over a fourteen year period

Tiki Rig

 James Wharram

1981-

Soft

 Built and sailed

Planesail

J. Walker

1980?

Rigid

Built and sailed
Four riged foils

Patient Lady III,VI

David  Hubbard - the wing

?

Rigid – composite

Built and sailed
Three symetrical panels for III and two elements for VI

Gallant rig or
Aero-junk

Jack Manners-Spencer of Aerosystems Ltd.

Late 1970's?

Soft

Very similar construction to Dragon's Wings with same reefing capability.  The rig does not open up for downwind sailing.

Tackwind



1974

Rigid

Built and sailed
Solid sail rotates about masthead

Padded sail

J. Nicolson

1972

Soft

Built and sailed
Double sided sail of terylene stuffed with layers of foam



Jerry Hubbard ? Designer or David Hubbard?

1970-

Soft

Double film with full length batten tension controlled the shape C-class cat built by Tony DiMauro of Roton Point, Connecticut in the 1970's for the Little America's cup challenge

Lady Helmsman

Austin Farrar

1966

Soft

Una wing sail - thick rigid leading edge foil (mast) with sail cloth extension

Gekete and Newman’s Boat

D. Gekete and B. Newman

1965 - 1971

Rigid

Self Trimming wingsail

Blackburn’s Boat

Blackburn

1962

Rigid



Lapwing rig/ Jester

H.G. Hasler

1952-1959

Soft

An improvement on the Ljungstrom rig: Twin booms added.  Same configuration as Dragon's Wings.

Freely pivoted aerofoil unit

H. Barkla

1951



Two tilted wingsails



MacKinnon

1951



Wingsails AYRS

Utne’s Boat

Utne

1941

Rigid



Ljungstrom rig

Dr. Fredrik Ljungstrom

1935

Soft

Not a wingsail but had the same capabilities as Dragon's Wings when running.  The rig did not have the twin booms like Dragon's wings though.
was a una rig with an unstayed rotatable mast that had a loose-footed folded sail that opened up when running.

R boat - Live Yankee

F. Herreshoff

1925-1927

Soft

Double luff sail with revolving mast

Dragon’s Wing (Chinese translation)



1897-1902

Soft

Built and sailed
Modified Chinese lug sail on a Junk

Double sided sail with full length battens placed on inside surface of each side. Battens were made of thin wooden slats tied together. Mast was unstayed and rotated with sail. Met great great grandson of the designer/builder in Lisbon Portugal at the Expo. The rig I currently use on my D4 is based on this rig.



 Dennis Conner

 ?



 designed a wingsailed catarmaran for the Americas Cup?
